(90.160.AQ) - FILTER COVER, CAB

Запчасти Case CX300D LC (90.160.AQ) - FILTER COVER, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

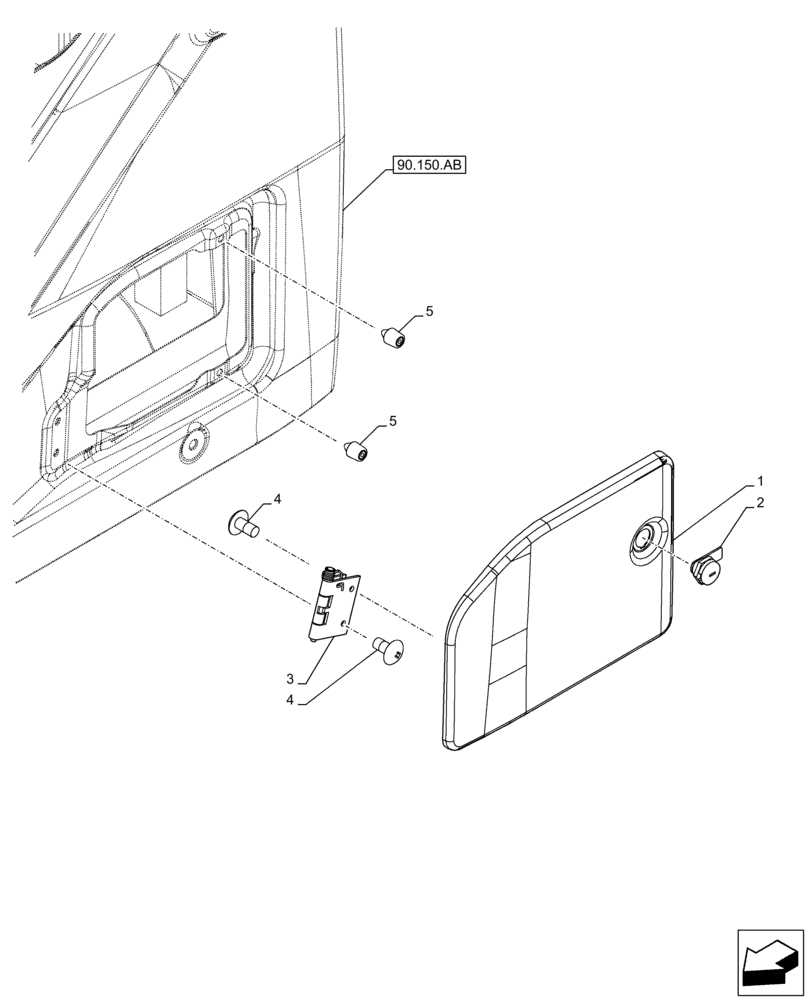

Схема запчастей Case CX300D LC - (90.160.AQ) - FILTER COVER, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
4
5
4
90.150.ab
2
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN37460

COVER

1шт.

2

KHN26010

LOCK

1шт.

3

KHN25390

HINGE

1шт.

4

KHN18800

SCREW,Spcl, M6 x 12mm

M6 x 1 x 12mm

4шт.

5

KHN25840

STOP

2шт.
