Запчасти Case CX300D LC (90.156.AT[01]) - WINDSHIELD, LATCH (90) - PLATFORM, CAB, BODYWORK AND DECALS

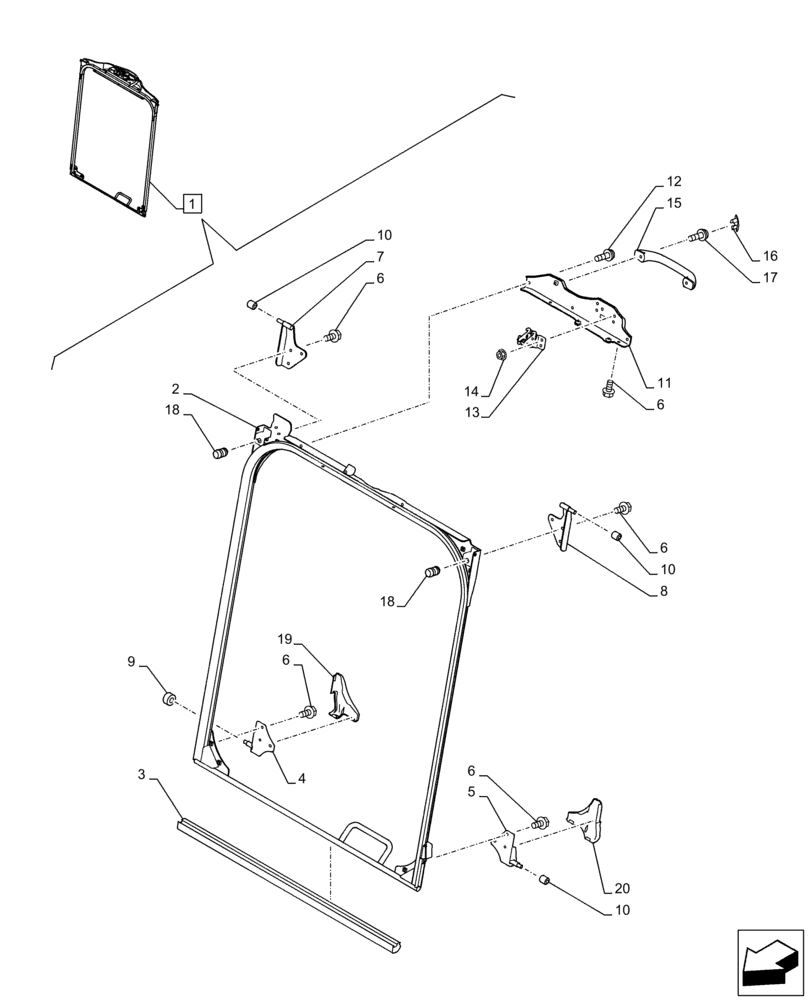

Схема запчастей Case CX300D LC - (90.156.AT[01]) - WINDSHIELD, LATCH (90) - PLATFORM, CAB, BODYWORK AND DECALS
18
17
4
6
7
13
10
9
8
20
19
16
12
6
10
6
14
3
2
10
11
1
15
6
18
5
6

Артикул

Название

Примечание

Количество

1

KHN25210

WINDOW ASSY

ASSY, Incl 2 - 18

1шт.

See also Figure 90.156.AL

1шт.

2

KHN25220

WINDOW FRAME

1шт.

3

KHN25750

SEAL

1шт.

4

KHN15670

STAY

1шт.

5

KHN25770

STAY

1шт.

6

KHN15690

BOLT

M6 x 1 x 12mm

13шт.

7

KHN25680

STAY

1шт.

8

KHN25690

STAY

1шт.

9

KHN15800

ROLLER

1шт.

10

KHN25600

ROLLER

3шт.

11

KHN25280

COVER

1шт.

12

KHN28230

BOLT

M6 x 1 x 12mm

5шт.

13

KHN25410

LOCK

1шт.

14

KHN25980

NUT

2шт.

15

KHN25870

HANDLE

1шт.

16

KHN25880

CAP

2шт.

17

KHN15770

BOLT,Flng, M6 x 20mm

M6 x 1 x 20mm

2шт.

18

KHN15830

STOP LOCK

2шт.

19

KHN16220

COVER

1шт.

20

KHN16230

COVER

1шт.

Выбрано товаров: 21
