Запчасти Case CX300D LC (90.151.AD[02]) - VAR - 488035 - SEAT, SAFETY BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS

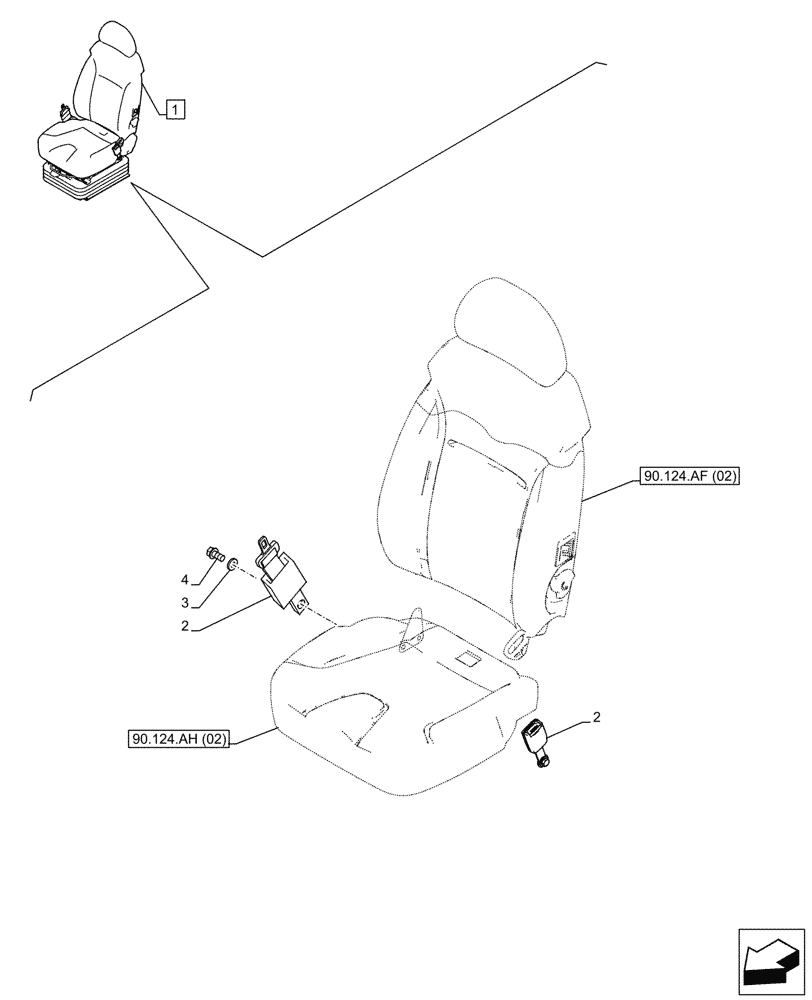

![Схема запчастей Case CX300D LC - (90.151.AD[02]) - VAR - 488035 - SEAT, SAFETY BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/casece/5444560.png)
90.124.ah (02)
4
3
2
2
1
90.124.af (02)
№
Артикул
Название
Примечание
Количество
1
KHN42800
DRIVER SEAT
ASSY, Incl 2 - 4, Serial Range: -C0329
1шт.
1
KHN42801
DRIVER SEAT
ASSY, Incl 2 - 4, Start Serial: D0329
1шт.
2
KHN40120
SEAT BELT
1шт.
3
KHN40100
WASHER
2шт.
4
KHN40110
BOLT
2шт.
Выбрано товаров: 5
