Запчасти Case CX300D LC (90.150.AC[01]) - CAB FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

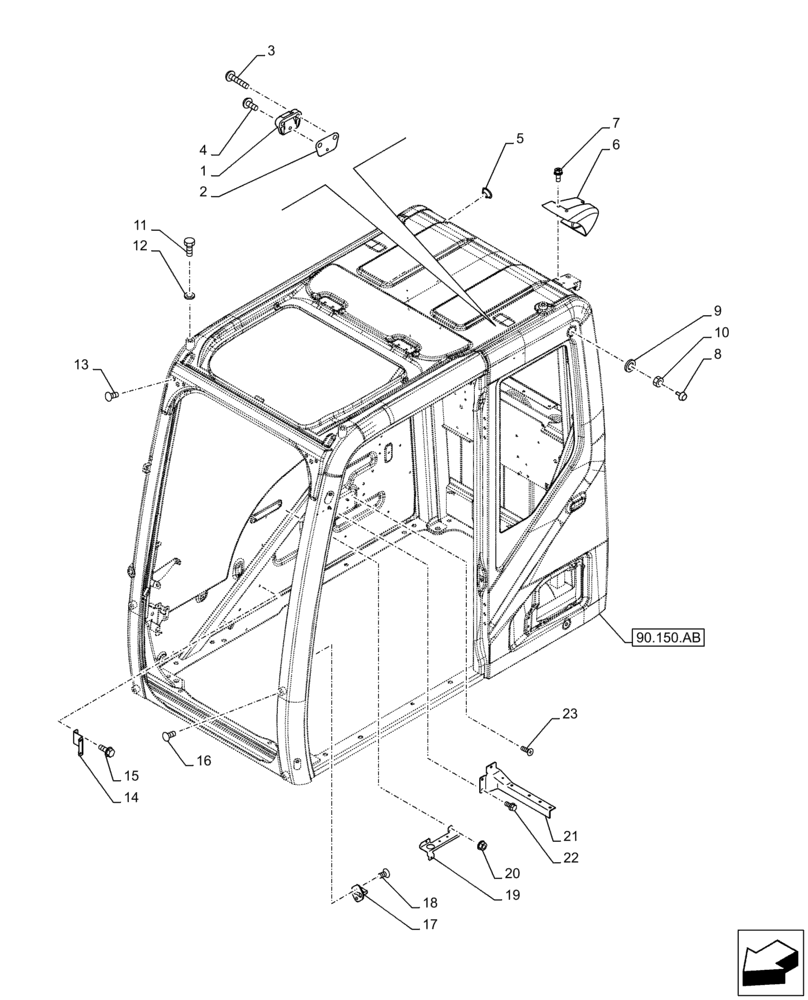

Схема запчастей Case CX300D LC - (90.150.AC[01]) - CAB FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
13
1
20
14
18
21
90.150.ab
7
23
9
22
16
15
19
2
4
3
11
17
5
8
12
6

Артикул

Название

Примечание

Количество

1

KHN14220

SUPPORT

1шт.

2

KHN2722

LEDGER PLATE

1шт.

3

KHN2681

SCREW

M6 x 1 x 30mm

2шт.

4

KHN2682

SCREW,Spcl

M6 x 1 x 12mm

1шт.

5

KHN14310

GROMMET

1шт.

6

KHN27450

COVER

1шт.

7

KHN14710

BOLT,Spcl

M6 x 1 x 14mm

3шт.

8

161356A1

STOP

2шт.

9

KHN25990

WASHER

2шт.

10

161357A1

NUT

2шт.

11

KHN16280

BOLT,Spcl

M16 x 2 x 25mm

4шт.

12

KHN16290

WASHER

4шт.

13

KHN25930

BOLT

4шт.

14

KHN25360

BRACKET, SUPPORTING

1шт.

15

KHN18870

BOLT

2шт.

16

KHN22940

PLASTIC PLUG

4шт.

17

KHN33990

STOP

1шт.

18

KHN33980

SCREW

2шт.

19

KHN25370

BRACKET, SUPPORTING

1шт.

20

KHN25980

NUT

2шт.

21

KHN25340

BRACKET, SUPPORTING

1шт.

22

KHN18860

BOLT,Spcl, Hex

3шт.

23

KHN2719

SCREW,Spcl

1шт.

Выбрано товаров: 23
