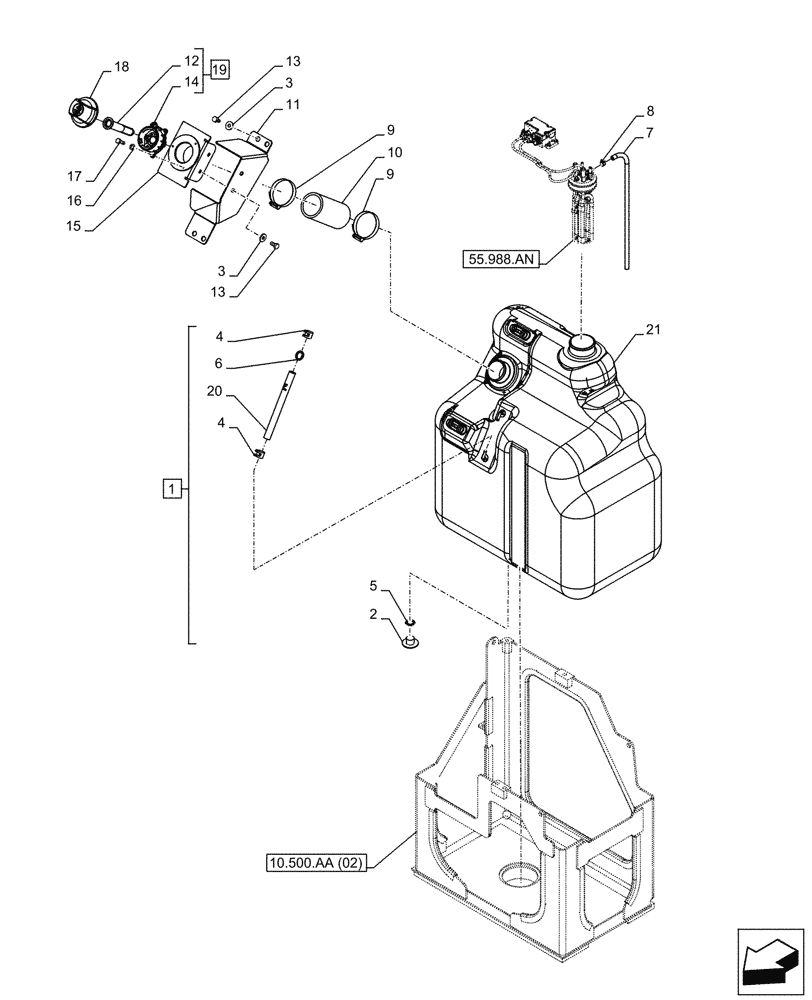

Запчасти Case CX300D LC (10.500.AA[01]) - DEF/ADBLUE™ TANK, COMPONENTS (10) - ENGINE

1

KBH15111

TANK

ASSY, Incl 2, 4 - 6, 20, 21, Serial Range: -C0260

1шт.

See also Figure 55.988.AN

1шт.

1

KBH16790

TANK

ASSY, Incl 2, 4 - 6, 20, 21, Start Serial: D0260

1шт.

See also Figure 55.988.AN

1шт.

2

KHH15570

PLUG

1шт.

3

KHH16160

WASHER

6шт.

4

KHH16070

BAND

2шт.

5

KHH16080

O-RING

1шт.

6

KSH14030

FLOAT

1шт.

7

157779A1

HOSE

1шт.

8

165951A1

CLAMP

1шт.

9

164968A1

COLLAR

2шт.

10

KBH12480

HOSE

1шт.

11

KBH13570

BRACKET

1шт.

12

KHH16450

FILTER STRAINER

1шт.

13

102R008A016N

BOLT

6шт.

14

KHH17420

BASE PLATE

1шт.

15

KBH13581

BRACKET

1шт.

16

KHH15650

WASHER

3шт.

17

KHH15640

BOLT

3шт.

18

KHH16980

FILLER CAP

1шт.

19

KHH15591

FILTER

ASSY, Urea Tank, Incl 14,12

1шт.

20

KHH15580

GAUGE

1шт.

21

KBH14691

TANK

1шт.
