(90.124.AH[02]) - VAR - 488035 - SEAT CUSHION

Запчасти Case CX300D LC (90.124.AH[02]) - VAR - 488035 - SEAT CUSHION (90) - PLATFORM, CAB, BODYWORK AND DECALS

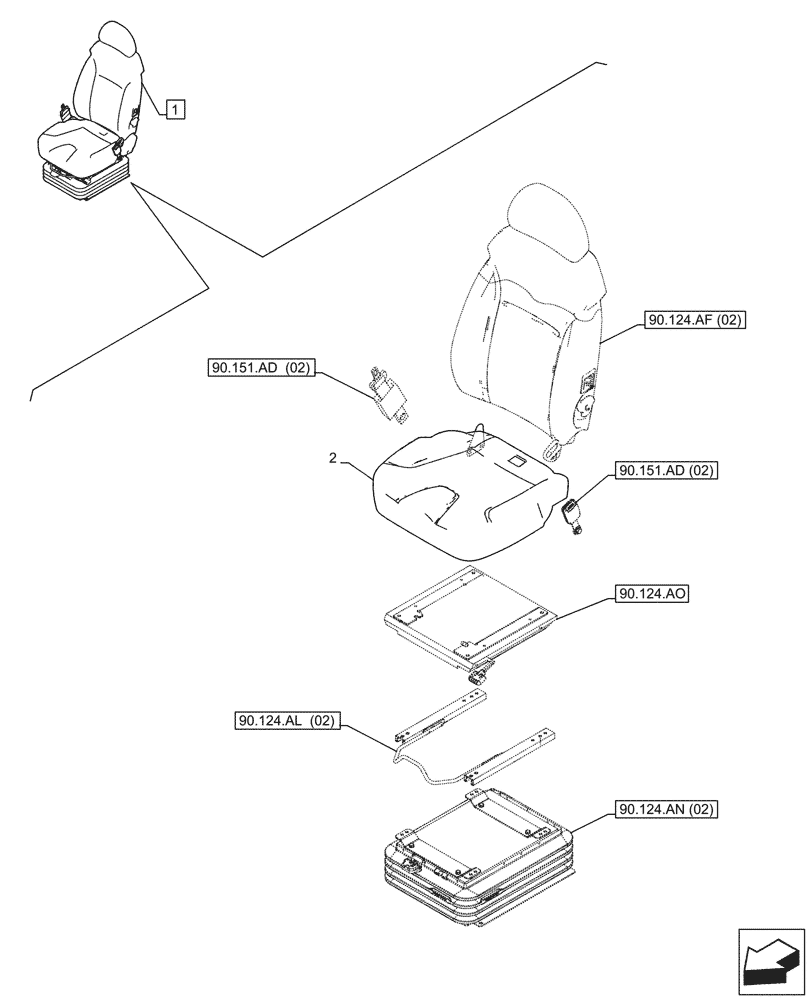

Схема запчастей Case CX300D LC - (90.124.AH[02]) - VAR - 488035 - SEAT CUSHION (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.an (02)
2
1
90.124.af (02)
90.124.ao
90.124.al (02)
90.151.ad (02)
90.151.ad (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN42800

DRIVER SEAT

ASSY, Incl 2, Serial Range: -C0329

1шт.

1

KHN42801

DRIVER SEAT

ASSY, Incl 2, Start Serial: D0329

1шт.

2

KHN40710

SEAT CUSHION

, Serial Range: -C0329

1шт.

2

KHN40711

SEAT CUSHION

, Start Serial: D0329

1шт.

Выбрано товаров: 4
