(90.118.BM) - REAR VIEW MIRROR, OUTSIDE

Запчасти Case CX300D LC (90.118.BM) - REAR VIEW MIRROR, OUTSIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

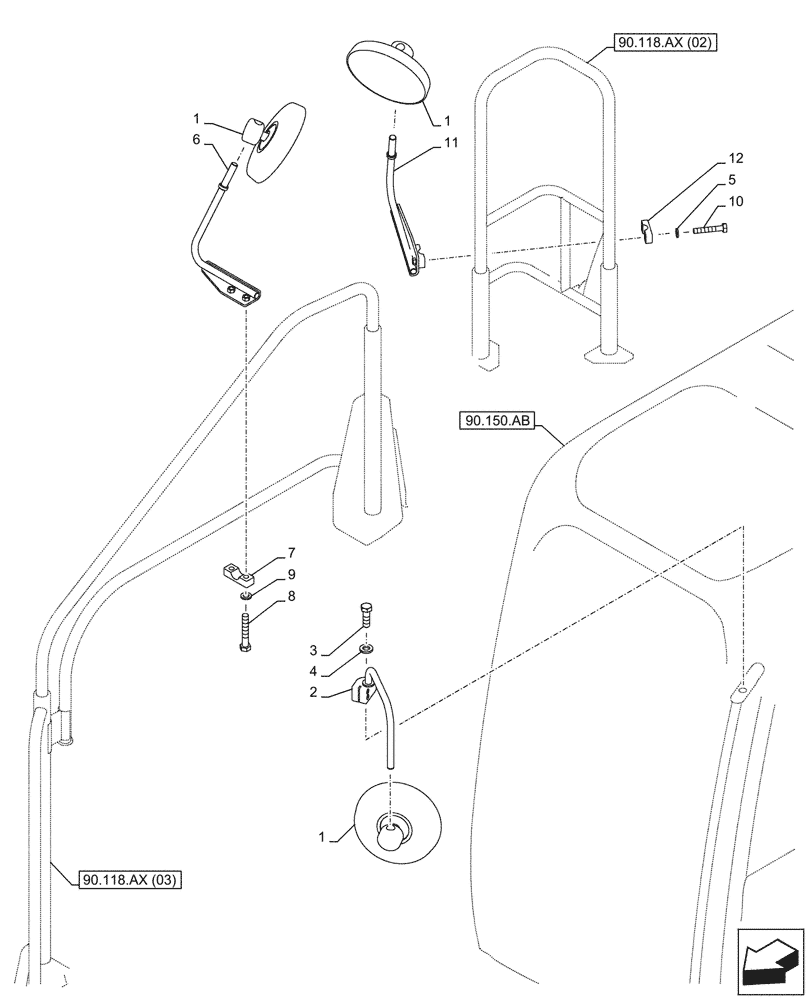

Схема запчастей Case CX300D LC - (90.118.BM) - REAR VIEW MIRROR, OUTSIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.118.ax (02)
7
10
4
1
2
12
6
8
1
11
9
3
1
5
90.150.ab
90.118.ax (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHP15130

REAR VIEW MIRROR

3шт.

2

KHP11350

SUPPORT

1шт.

3

KHP15020

BOLT,Hex

1шт.

4

157528A1

WASHER

1шт.

5

892-11010

LOCK WASHER,M10

2шт.

6

KHP24860

STAY

1шт.

7

KHP18570

CLAMP

1шт.

8

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

, Start Serial: D0279

2шт.

9

183-112VR

SPRING WASHER

2шт.

10

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

, Start Serial: D0279

2шт.

11

KHP24870

STAY

1шт.

12

169338A1

CLAMP

1шт.
