(90.116.BE) - GUARD, FRAME, LOWER

Запчасти Case CX300D LC (90.116.BE) - GUARD, FRAME, LOWER (90) - PLATFORM, CAB, BODYWORK AND DECALS

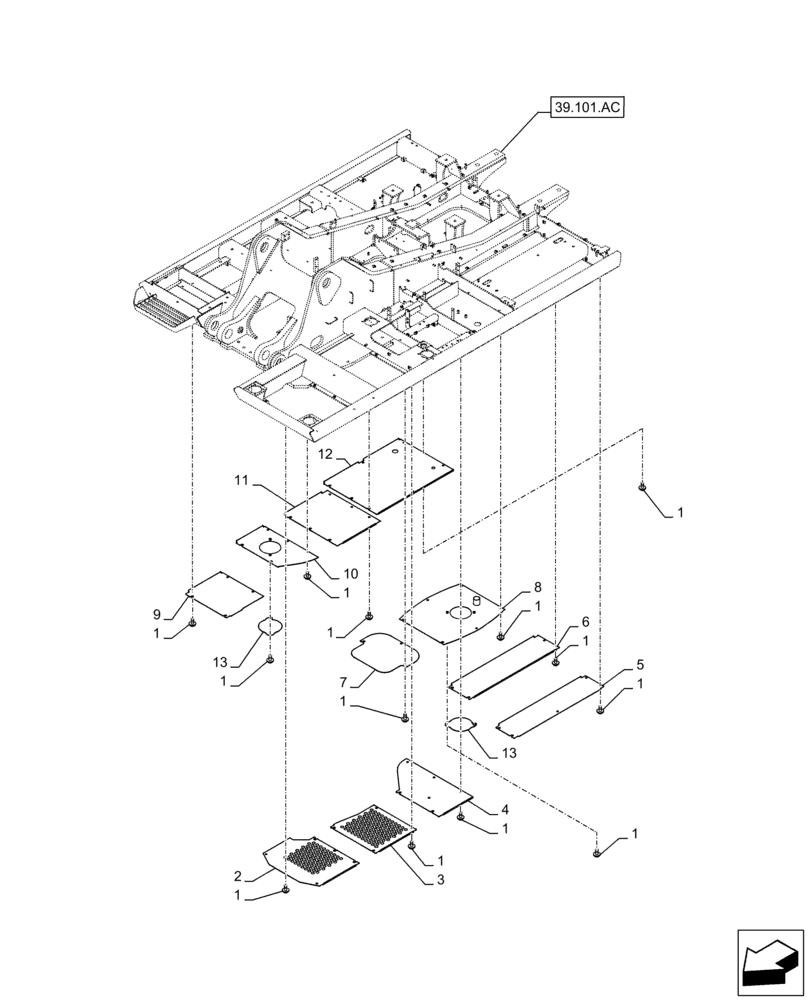

Схема запчастей Case CX300D LC - (90.116.BE) - GUARD, FRAME, LOWER (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
11
39.101.ac
1
13
1
1
1
1
10
1
1
1
4
9
1
13
1
2
5
8
7
3
1
12
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN26490

BOLT

57шт.

2

KBB17340G1

COVER

1шт.

3

KBB17980G1

COVER

1шт.

4

KBB17990G1

COVER

1шт.

5

KBB18000G1

COVER

1шт.

6

KBB18010G1

COVER

1шт.

7

KBB18020G1

COVER

1шт.

8

KBB18030G1

COVER

1шт.

9

KBB18040G1

COVER

1шт.

10

KBB18050G1

COVER

1шт.

11

KBB18060G1

COVER

1шт.

12

KBB18071G1

COVER

1шт.

13

KSB18190G1

COVER

2шт.
