(90.105.CF) - STD + VAR - 488031 - HOOD, FUEL TRANSFER PUMP

Запчасти Case CX300D LC (90.105.CF) - STD + VAR - 488031 - HOOD, FUEL TRANSFER PUMP (90) - PLATFORM, CAB, BODYWORK AND DECALS

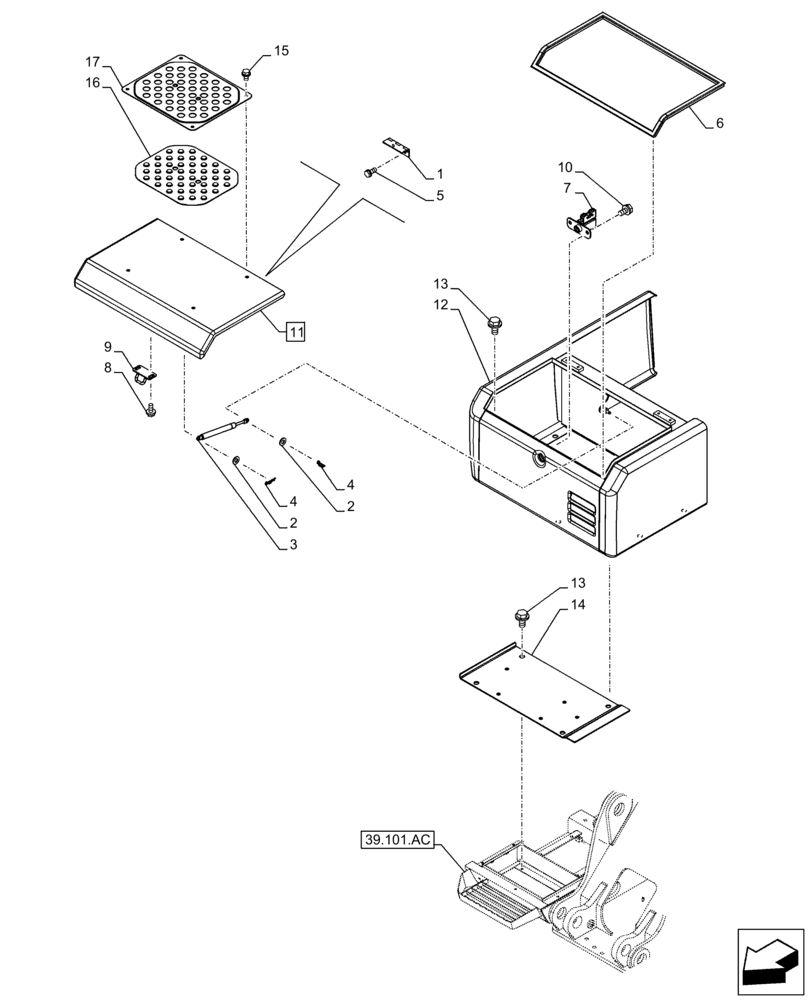

Схема запчастей Case CX300D LC - (90.105.CF) - STD + VAR - 488031 - HOOD, FUEL TRANSFER PUMP (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
2
12
1
13
15
13
16
4
5
11
2
10
17
6
14
9
39.101.ac
8
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KAN2771

BOLT,Spcl

4шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

3

153077A1

COTTER PIN

2шт.

4

KHN38920

DAMPER

1шт.

5

KHN17220

HINGE

2шт.

6

KHN36780

TRIM

1шт.

7

KHN35780

LOCK

1шт.

8

166350A1

BOLT

2шт.

9

KHN12740

SUPPORT

1шт.

10

166351A1

BOLT,Sems, M10 x 20mm

2шт.

11

KHN36740G1

COVER

ASSY, Incl 1

1шт.

12

KHN36750G1

COVER

1шт.

13

105R012Y025R

BOLT

, Serial Range: -C0319

7шт.

13

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

, Start Serial: D0319

7шт.

14

KSN17560G1

COVER

1шт.

15

KHN13540

BOLT,Spcl

4шт.

16

KHN10940

RUBBER PAD

2шт.

17

KHN13510B1

COVER

1шт.
