(90.105.BV[08]) - STD + VAR - 488031 - HOUSING & COVERS, INSULATION

Запчасти Case CX300D LC (90.105.BV[08]) - STD + VAR - 488031 - HOUSING & COVERS, INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

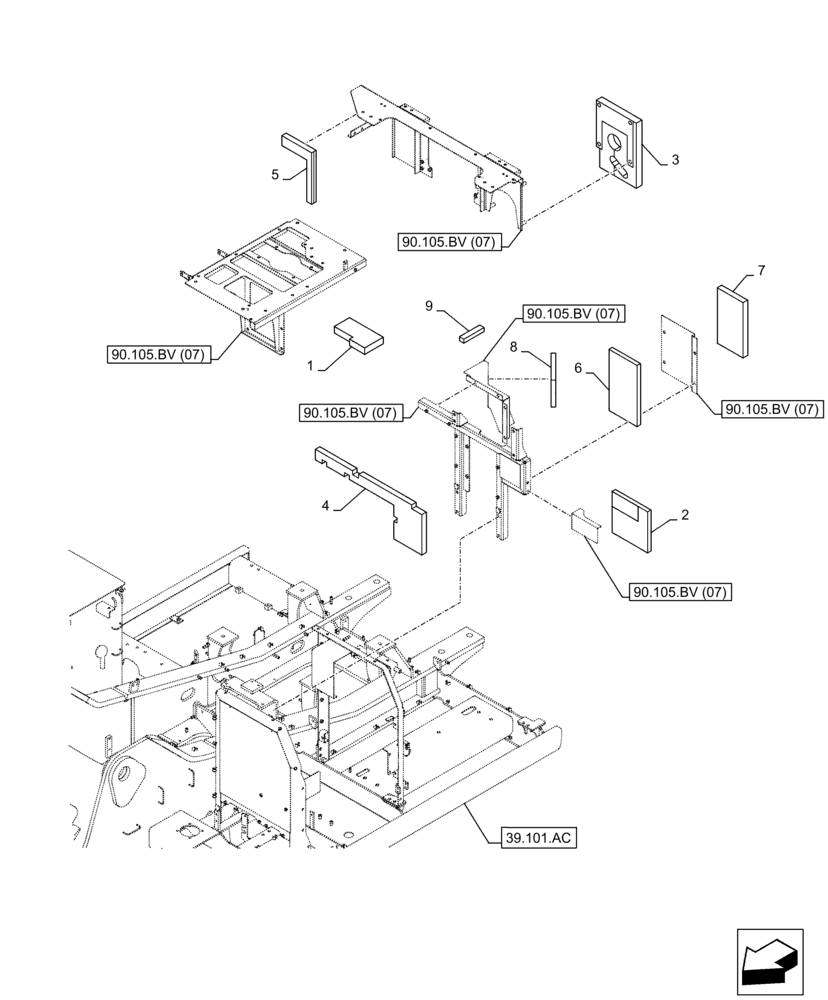

Схема запчастей Case CX300D LC - (90.105.BV[08]) - STD + VAR - 488031 - HOUSING & COVERS, INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
6
8
90.105.bv (07)
9
5
3
39.101.ac
90.105.bv (07)
7
90.105.bv (07)
90.105.bv (07)
90.105.bv (07)
90.105.bv (07)
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBN22340

INSULATION

1шт.

2

KBN21660

SEAL

1шт.

3

KBN21670

SEAL

1шт.

4

KBN21691

SEAL

1шт.

5

KBN21680

SEAL

1шт.

6

KBN21700

SEAL

1шт.

7

KBN17980

INSULATION

1шт.

8

KBN21710

SEAL

1шт.

9

KBN21720

SEAL

1шт.

Выбрано товаров: 9
