(90.105.BV[07]) - STD + VAR - 488031 - HOUSING & COVERS

Запчасти Case CX300D LC (90.105.BV[07]) - STD + VAR - 488031 - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

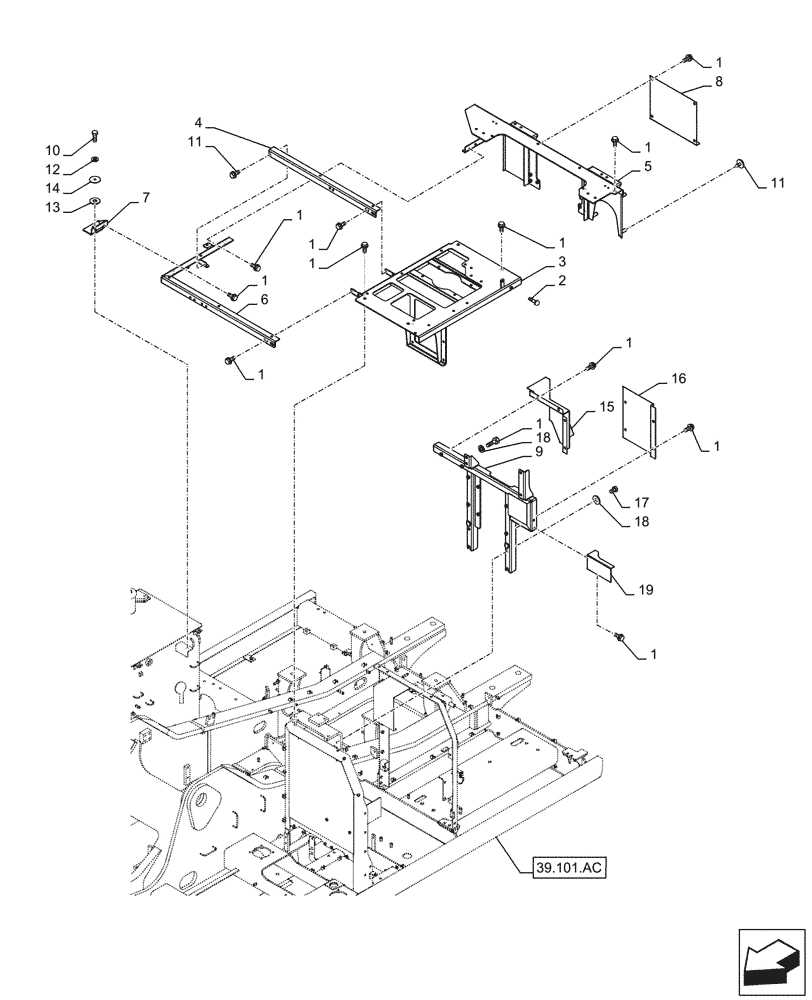

Схема запчастей Case CX300D LC - (90.105.BV[07]) - STD + VAR - 488031 - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.101.ac
17
1
6
1
1
18
3
9
1
1
4
5
1
11
1
10
2
19
12
13
11
1
16
1
1
14
1
18
8
7
15
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

, Start Serial: D0310

4шт.

2

159091A1

STOP

3шт.

3

KBN21001

FRAME

1шт.

4

KBN21051

FRAME

1шт.

5

KBN21061

FRAME

1шт.

6

KBN21040

FRAME

1шт.

7

KSN19960

BRACKET

1шт.

8

KBN21130

COVER

1шт.

9

KBN20980

FRAME

1шт.

10

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

11

KHN24900

BOLT

4шт.

12

150811A1

WASHER

1шт.

13

KHN39340

WASHER

1шт.

14

KHN39350

WASHER

1шт.

15

KBN21500

COVER

, Serial Range: -C0312

1шт.

15

KBN21501

COVER

, Start Serial: D0312

1шт.

16

KBN21490

COVER

1шт.

17

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

4шт.

18

151161A1

WASHER

, Start Serial: D0310

4шт.

19

KBN21480

COVER

1шт.
