Запчасти Case CX300D LC (90.105.BV[06]) - STD + VAR - 488031 - HOUSING & COVERS, INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

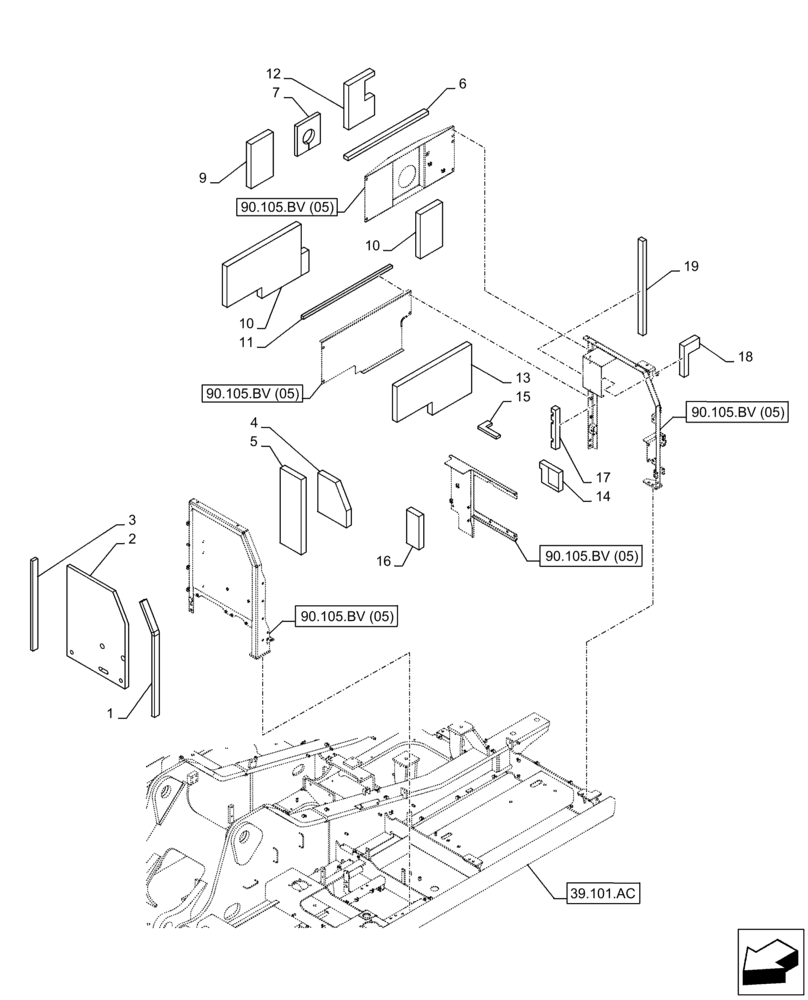

![Схема запчастей Case CX300D LC - (90.105.BV[06]) - STD + VAR - 488031 - HOUSING & COVERS, INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/casece/5289207.png)
18
14
10
7
13
19
90.105.bv (05)
6
12
90.105.bv (05)
16
3
11
39.101.ac
90.105.bv (05)
90.105.bv (05)
2
15
90.105.bv (05)
10
1
9
5
4
17
№
Артикул
Название
Примечание
Количество
1
KBN17720
SEAL PROTECTION
1шт.
2
KBN21580
INSULATION
1шт.
3
KBN17730
SEAL PROTECTION
1шт.
4
KBN22280
INSULATION
1шт.
5
KBN17930
INSULATION
1шт.
6
KBN17740
SEAL PROTECTION
1шт.
7
KSN19530
SEAL
1шт.
9
KBN17940
INSULATION
2шт.
10
KBN21610
INSULATION
1шт.
11
KBN21600
SEAL
1шт.
12
KBN22360
INSULATION
1шт.
13
KBN22330
INSULATION
1шт.
14
KBN21620
SEAL
1шт.
15
KBN17600
SEAL PROTECTION
1шт.
16
KBN22350
INSULATION
1шт.
17
KBN21640
SEAL
1шт.
18
KBN17580
SEAL PROTECTION
1шт.
19
KBN17750
SEAL PROTECTION
1шт.
Выбрано товаров: 18
