(90.105.BV[04]) - COVER, CUSHION, VALVE, CONTROL PATTERN SELECTION

Запчасти Case CX300D LC (90.105.BV[04]) - COVER, CUSHION, VALVE, CONTROL PATTERN SELECTION (90) - PLATFORM, CAB, BODYWORK AND DECALS

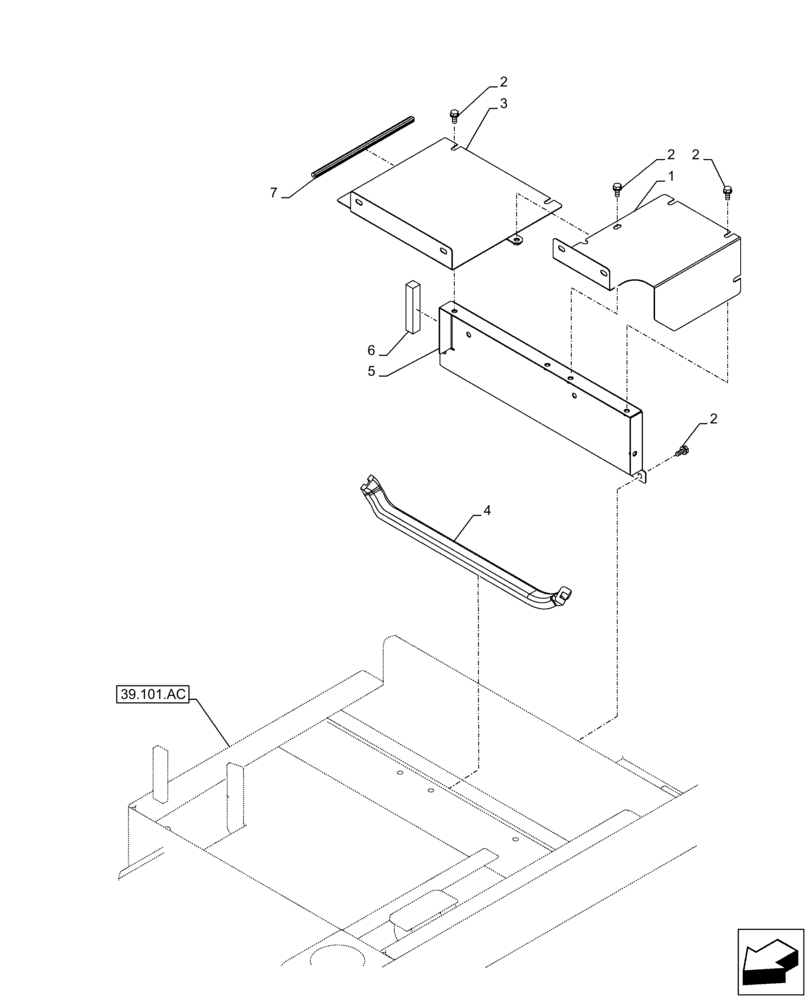

Схема запчастей Case CX300D LC - (90.105.BV[04]) - COVER, CUSHION, VALVE, CONTROL PATTERN SELECTION (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
39.101.ac
4
5
2
2
2
7
2
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBJ23230

COVER

1шт.

2

166052A1

BOLT

14шт.

3

KBJ23240

COVER

1шт.

4

KBJ16190

SEAL

2шт.

5

KBJ23220

COVER

1шт.

6

KBJ20380

SEAL

1шт.

7

KSN0356

CUSHION

1шт.
