(90.105.BV[03]) - VAR - 461558 - COVER, CUSHION, VALVE, CONTROL PATTERN SELECTION

Запчасти Case CX300D LC (90.105.BV[03]) - VAR - 461558 - COVER, CUSHION, VALVE, CONTROL PATTERN SELECTION (90) - PLATFORM, CAB, BODYWORK AND DECALS

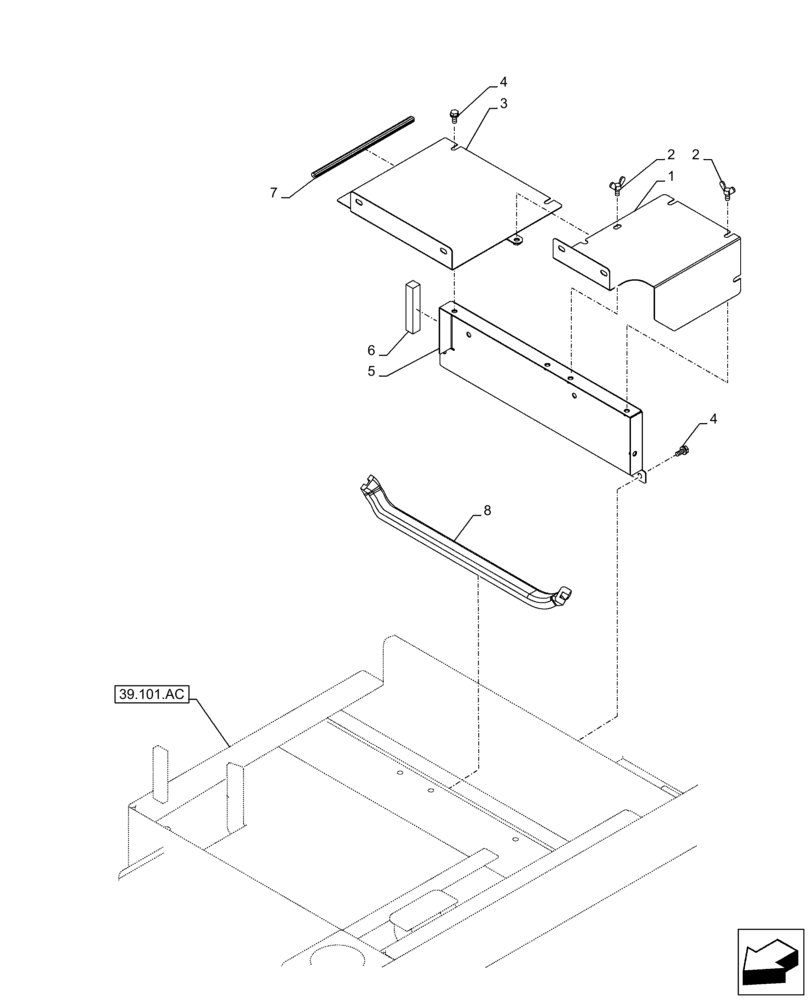

Схема запчастей Case CX300D LC - (90.105.BV[03]) - VAR - 461558 - COVER, CUSHION, VALVE, CONTROL PATTERN SELECTION (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.101.ac
2
3
4
6
8
2
4
1
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBJ23230

COVER

1шт.

2

KMN1330

BOLT

6шт.

3

KBJ23240

COVER

1шт.

4

166052A1

BOLT

M10 x 25

8шт.

5

KBJ23220

COVER

1шт.

6

KBJ20380

SEAL

1шт.

7

KSN0356

CUSHION

1шт.

8

KBJ16190

SEAL

2шт.

Выбрано товаров: 8
