(90.105.BV[01]) - TOP COVER, PLATE

Запчасти Case CX300D LC (90.105.BV[01]) - TOP COVER, PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS

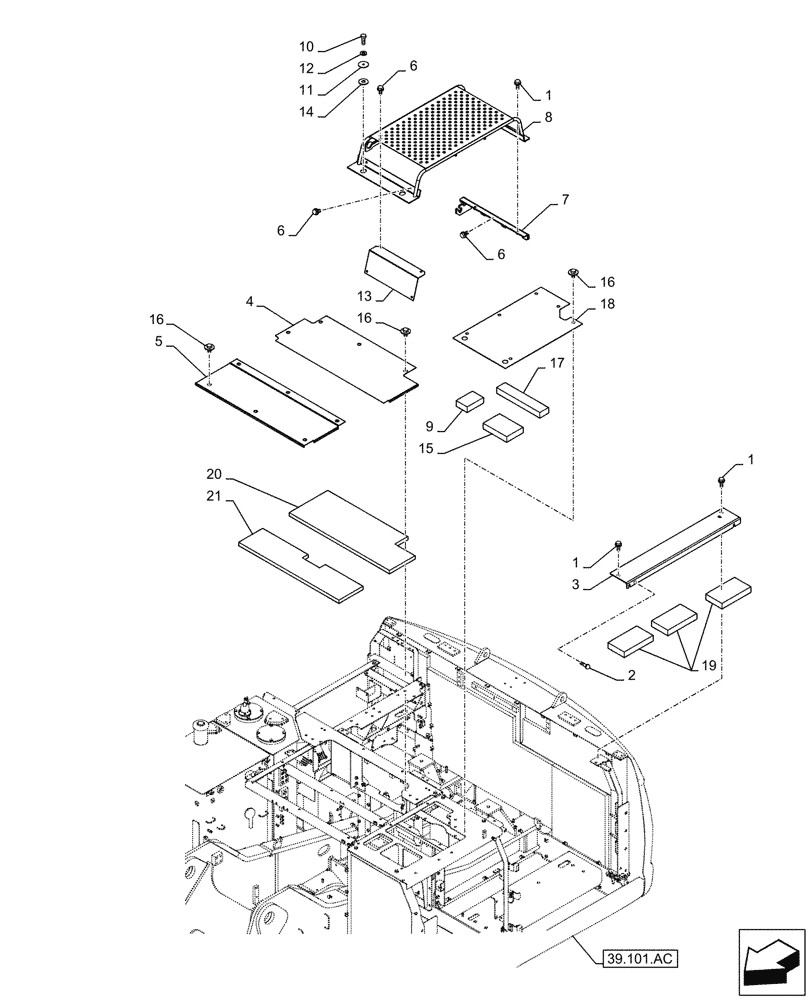

Схема запчастей Case CX300D LC - (90.105.BV[01]) - TOP COVER, PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.101.ac
13
19
5
1
18
1
9
8
17
11
6
7
16
16
2
6
3
12
1
10
14
15
6
20
21
4
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

166352A1

BOLT

1шт.

2

159091A1

STOP

1шт.

3

KBN21020

FRAME

1шт.

4

KBN21161

COVER

1шт.

5

KBN21150

COVER

1шт.

6

105R012Y025R

BOLT

7шт.

7

KBN21390

BRACKET

1шт.

8

KBN21240

STEP

1шт.

9

KBN22300

INSULATION

, Serial Range: -C0324

1шт.

9

KBN22301

INSULATION

, Start Serial: D0324

1шт.

10

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

11

KHN39350

WASHER

2шт.

12

150811A1

WASHER

2шт.

13

KBN21400

COVER

1шт.

14

KHN39340

WASHER

2шт.

15

KBN22290

INSULATION

, Serial Range: -C0324

1шт.

15

KBN22291

INSULATION

, Start Serial: D0324

1шт.

16

KHN12020

BOLT,Spcl

1шт.

17

KTN14660

INSULATION

1шт.

18

KBN21141

COVER

1шт.

19

KBN21650

INSULATION

3шт.

20

KBN21800

INSULATION

1шт.

21

KBN17550

INSULATION

1шт.
