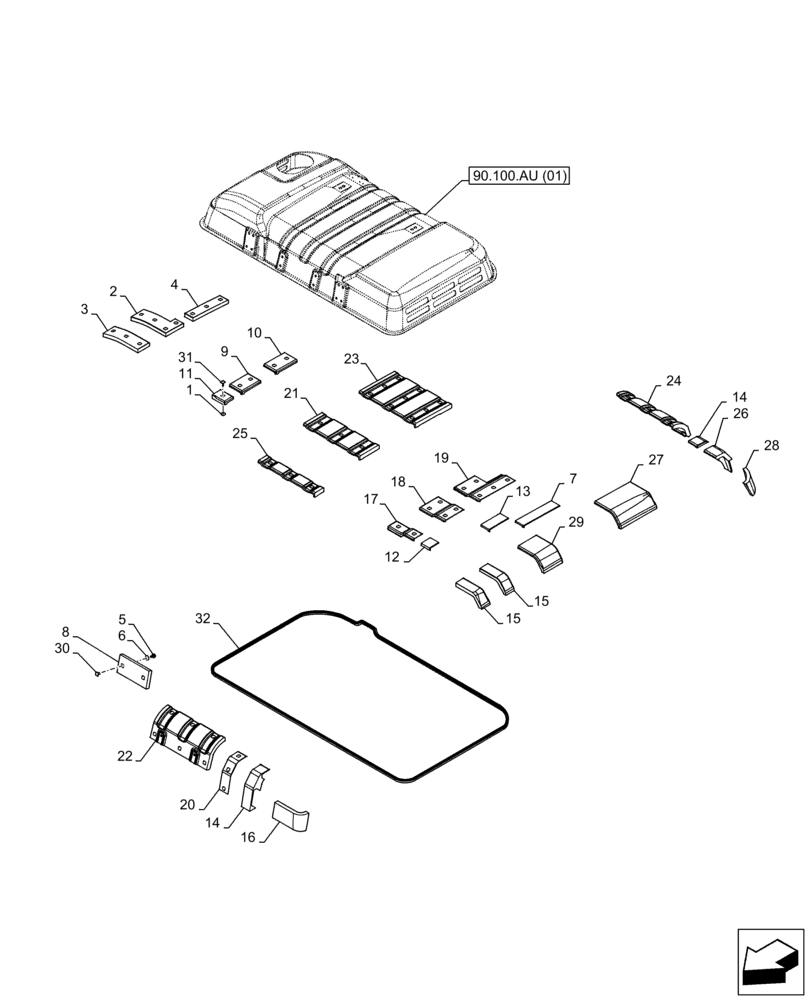

Запчасти Case CX300D LC (90.100.AU[02]) - STD + VAR - 488031 - ENGINE HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KHN35020

WASHER

47шт.

2

KBN18820

INSULATION

1шт.

3

KBN18830

INSULATION

1шт.

4

KBN18810

INSULATION

1шт.

5

166350A1

BOLT

12шт.

6

163356A1

WASHER

12шт.

7

KBN18870

SEAL PROTECTION

1шт.

8

KBN18880

INSULATION

1шт.

9

KBN18900

INSULATION

1шт.

10

KBN18910

INSULATION

1шт.

11

KBN18890

INSULATION

1шт.

12

KBN18850

SEAL PROTECTION

1шт.

13

KBN18860

SEAL PROTECTION

1шт.

14

KBN18840

SEAL PROTECTION

2шт.

15

KBN19020

INSULATION

2шт.

16

KBN19010

INSULATION

1шт.

17

KBN18980

INSULATION

1шт.

18

KBN18990

INSULATION

1шт.

19

KBN19000

INSULATION

1шт.

20

KBN18970

INSULATION

1шт.

21

KBN18940

INSULATION

1шт.

22

KBN21350

INSULATION

1шт.

23

KBN21370

INSULATION

1шт.

24

KBN21380

INSULATION

1шт.

25

KBN21360

INSULATION

1шт.

26

KBN19090

INSULATION

1шт.

27

KBN19040

INSULATION

1шт.

28

KBN19050

INSULATION

1шт.

29

KBN19030

INSULATION

1шт.

30

KSN17410

BAR

12шт.

See also Figure 90.100.AU(01)

1шт.

31

KSN17420

BAR

47шт.

See also Figure 90.100.AU(01)

1шт.

32

KHN36110

TRIM

1шт.
