(88.100.84[07]) - DIA KIT, REINFORCEMENT, ARM (L=2.65M), SHORT

Запчасти Case CX300D LC (88.100.84[07]) - DIA KIT, REINFORCEMENT, ARM (L=2.65M), SHORT (88) - ACCESSORIES

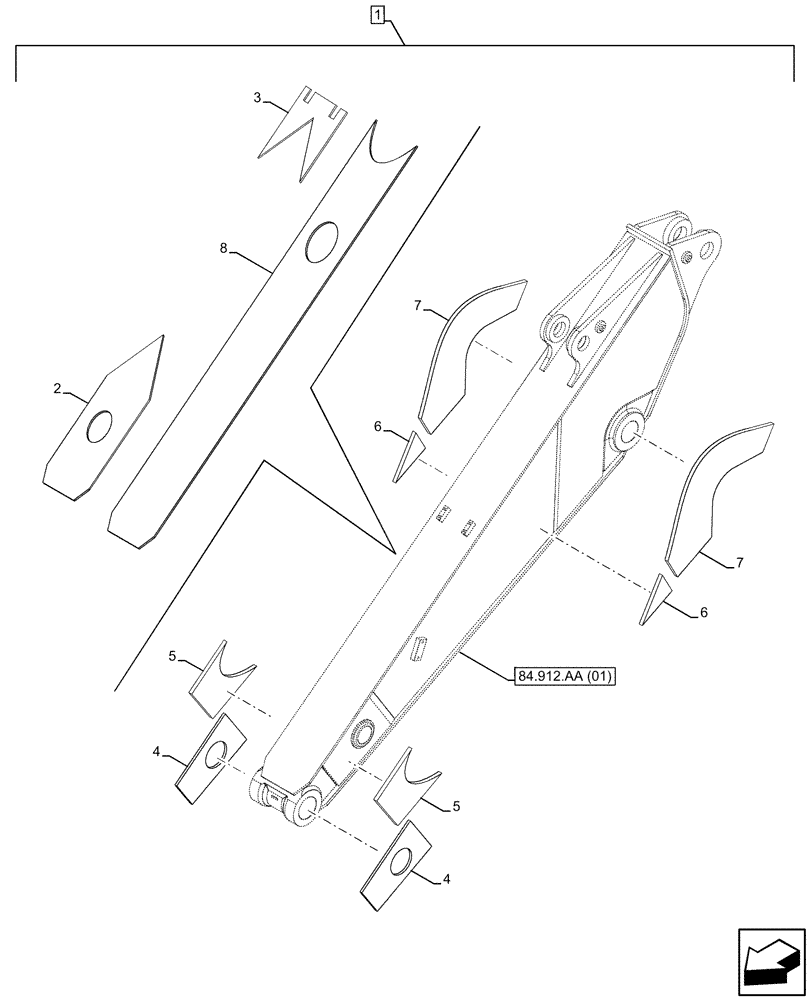

Схема запчастей Case CX300D LC - (88.100.84[07]) - DIA KIT, REINFORCEMENT, ARM (L=2.65M), SHORT (88) - ACCESSORIES
6
7
3
4
1
7
8
84.912.aa (01)
5
2
5
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP492-00

CONSTRUCTION DIA

Short Arm Reinforcement, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KBP11150

PLATE

1шт.

3

KBV35780

PLATE

1шт.

4

KBP12310

PLATE

2шт.

5

KBP11180

PLATE

2шт.

6

KBP14320

PLATE

2шт.

7

KBV35800

PLATE

2шт.

8

KBV1527

PLATE

1шт.
