(88.100.84[06]) - DIA KIT, REINFORCEMENT, ARM (L=2.65M), SHORT, BOOM

Запчасти Case CX300D LC (88.100.84[06]) - DIA KIT, REINFORCEMENT, ARM (L=2.65M), SHORT, BOOM (88) - ACCESSORIES

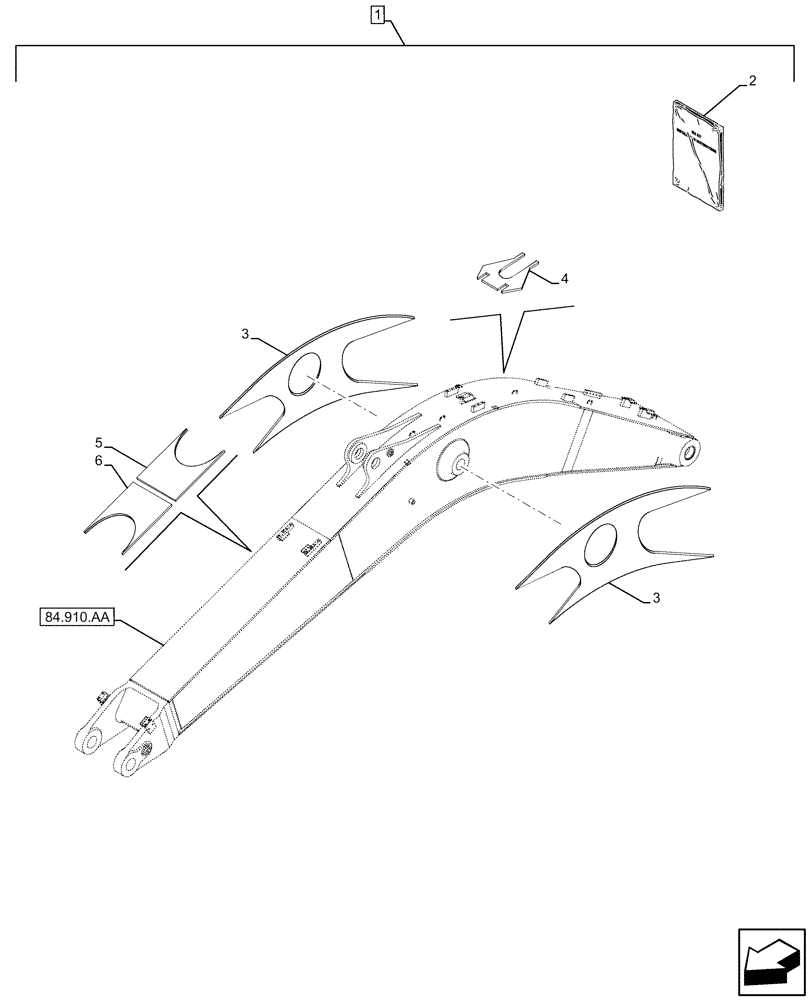

Схема запчастей Case CX300D LC - (88.100.84[06]) - DIA KIT, REINFORCEMENT, ARM (L=2.65M), SHORT, BOOM (88) - ACCESSORIES
6
2
3
84.910.aa
1
4
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP492-00

CONSTRUCTION DIA

Short Arm Reinforcement, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47789464

INSTRUCTION

1шт.

2

47829184

INSTRUCTION

1шт.

3

KBP12300

PLATE

2шт.

4

KBV35510

PLATE

1шт.

5

KBP14260

PLATE

1шт.

6

KBP14250

PLATE

1шт.
