(88.100.84[05]) - DIA KIT, REINFORCEMENT, LONG EXCAVATOR ARM (L=3.66M)

Запчасти Case CX300D LC (88.100.84[05]) - DIA KIT, REINFORCEMENT, LONG EXCAVATOR ARM (L=3.66M) (88) - ACCESSORIES

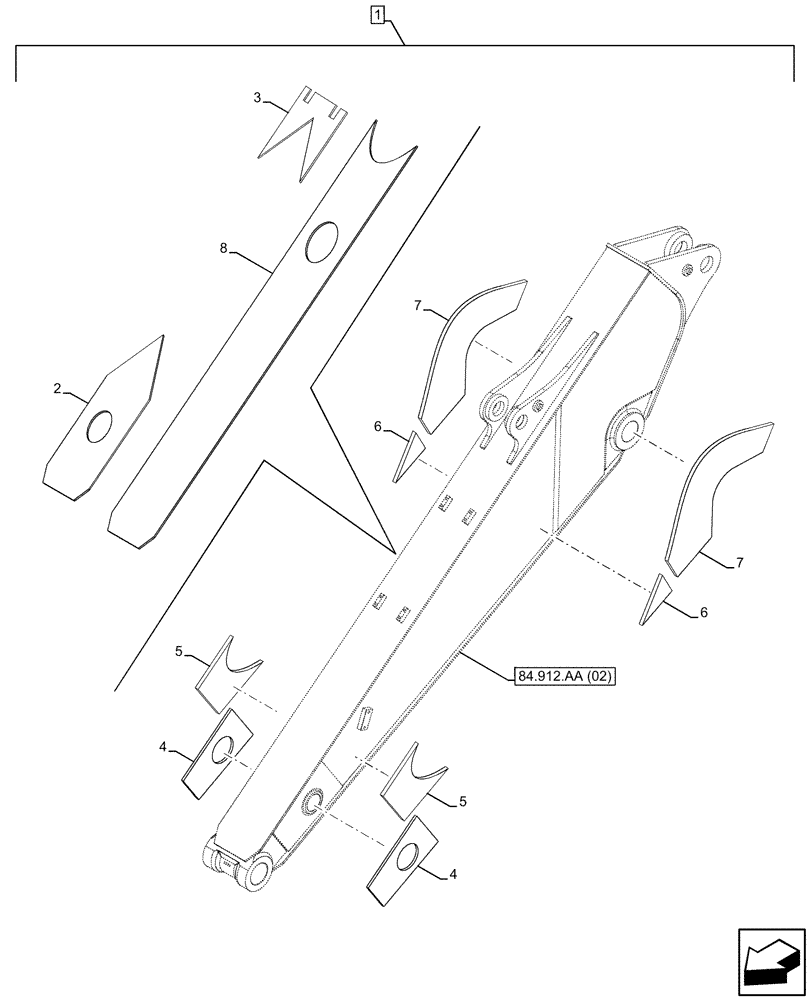

Схема запчастей Case CX300D LC - (88.100.84[05]) - DIA KIT, REINFORCEMENT, LONG EXCAVATOR ARM (L=3.66M) (88) - ACCESSORIES
2
8
4
4
6
84.912.aa (02)
3
5
5
7
6
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP493-00

CONSTRUCTION DIA

Long Arm Reinforcement, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KBP11150

PLATE

1шт.

3

KBV35780

PLATE

1шт.

4

KBP12310

PLATE

2шт.

5

KBP11180

PLATE

2шт.

6

KBP14320

PLATE

2шт.

7

KBV35810

PLATE

2шт.

8

KBV1527

PLATE

1шт.
