(88.100.84[03]) - DIA KIT, REINFORCEMENT, ARM (L=3.18M), STANDARD

Запчасти Case CX300D LC (88.100.84[03]) - DIA KIT, REINFORCEMENT, ARM (L=3.18M), STANDARD (88) - ACCESSORIES

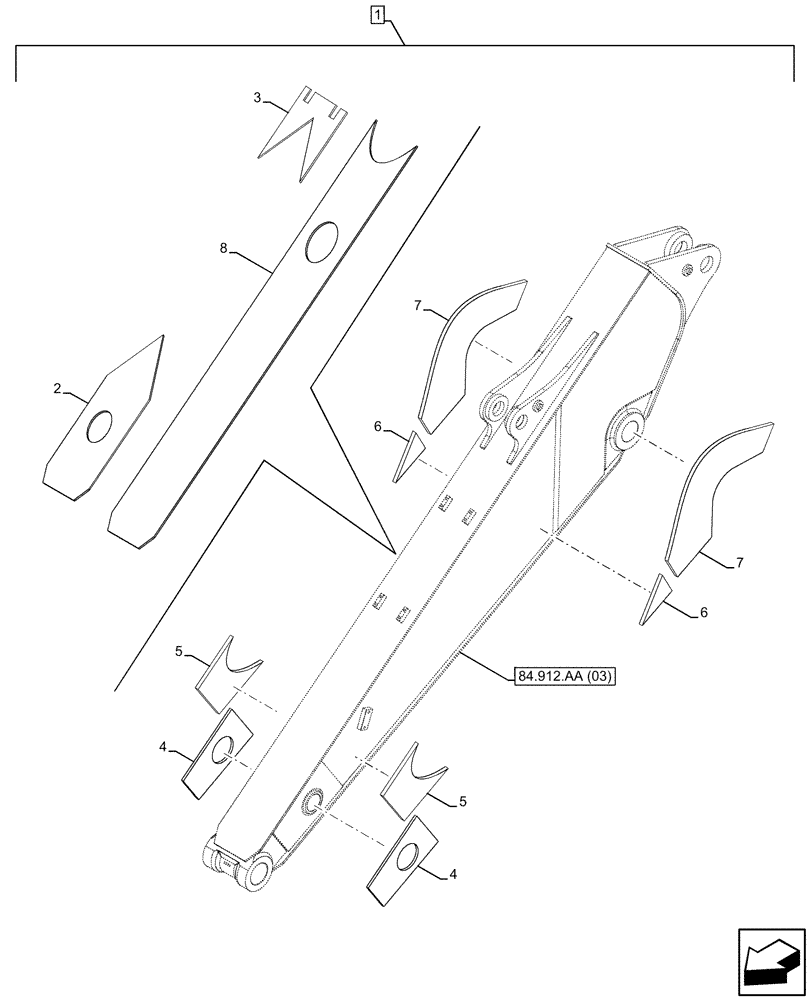

Схема запчастей Case CX300D LC - (88.100.84[03]) - DIA KIT, REINFORCEMENT, ARM (L=3.18M), STANDARD (88) - ACCESSORIES
7
4
84.912.aa (03)
6
5
5
3
1
8
2
6
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP491-00

CONSTRUCTION DIA

Standard Arm Reinforcement, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KBP11150

PLATE

1шт.

3

KBV35780

PLATE

1шт.

4

KBP12310

PLATE

2шт.

5

KBP11180

PLATE

2шт.

6

KBP14270

PLATE

2шт.

7

KBV35790

PLATE

2шт.

8

KBV1527

PLATE

1шт.
