(88.100.84[02]) - DIA KIT, REINFORCEMENT, ARM (L=3.18M), STANDARD, BOOM

Запчасти Case CX300D LC (88.100.84[02]) - DIA KIT, REINFORCEMENT, ARM (L=3.18M), STANDARD, BOOM (88) - ACCESSORIES

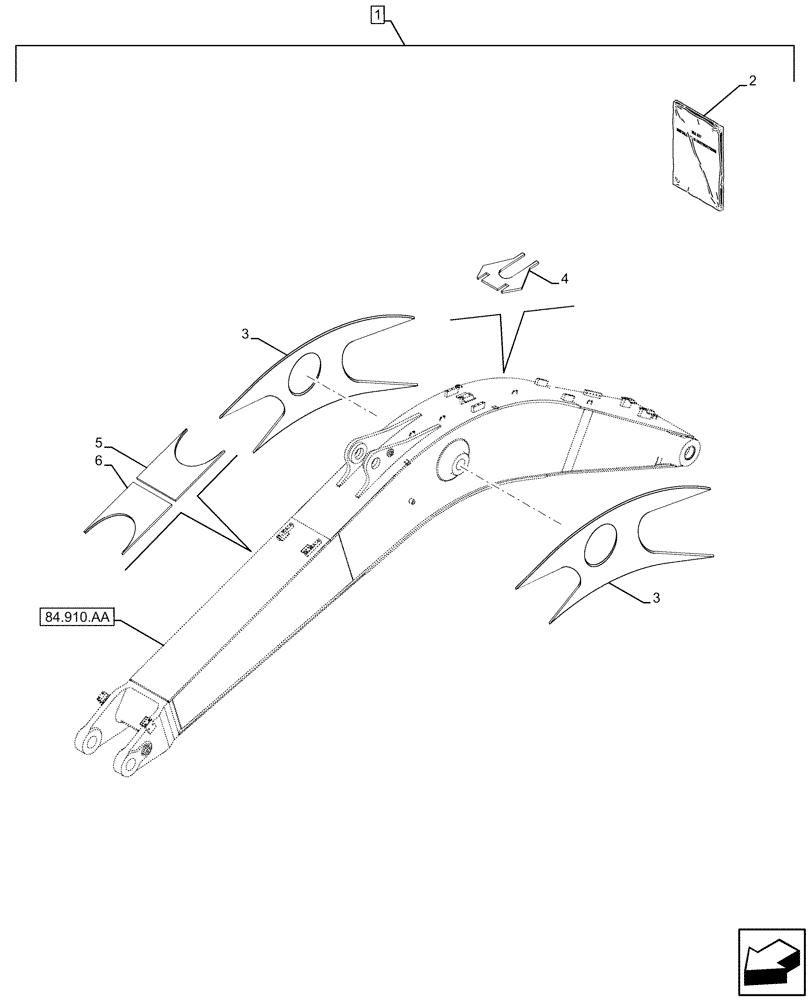

Схема запчастей Case CX300D LC - (88.100.84[02]) - DIA KIT, REINFORCEMENT, ARM (L=3.18M), STANDARD, BOOM (88) - ACCESSORIES
5
3
1
84.910.aa
2
4
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP491-00

CONSTRUCTION DIA

Standard Arm Reinforcement, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47789463

INSTRUCTION

1шт.

2

47829183

INSTRUCTION

1шт.

3

KBP12300

PLATE

2шт.

4

KBV35510

PLATE

1шт.

5

KBP14260

PLATE

1шт.

6

KBP14250

PLATE

1шт.
