(88.100.55[20]) - DIA KIT, RIGHT, SIDE CAMERA, WIRE HARNESS

Запчасти Case CX300D LC (88.100.55[20]) - DIA KIT, RIGHT, SIDE CAMERA, WIRE HARNESS (88) - ACCESSORIES

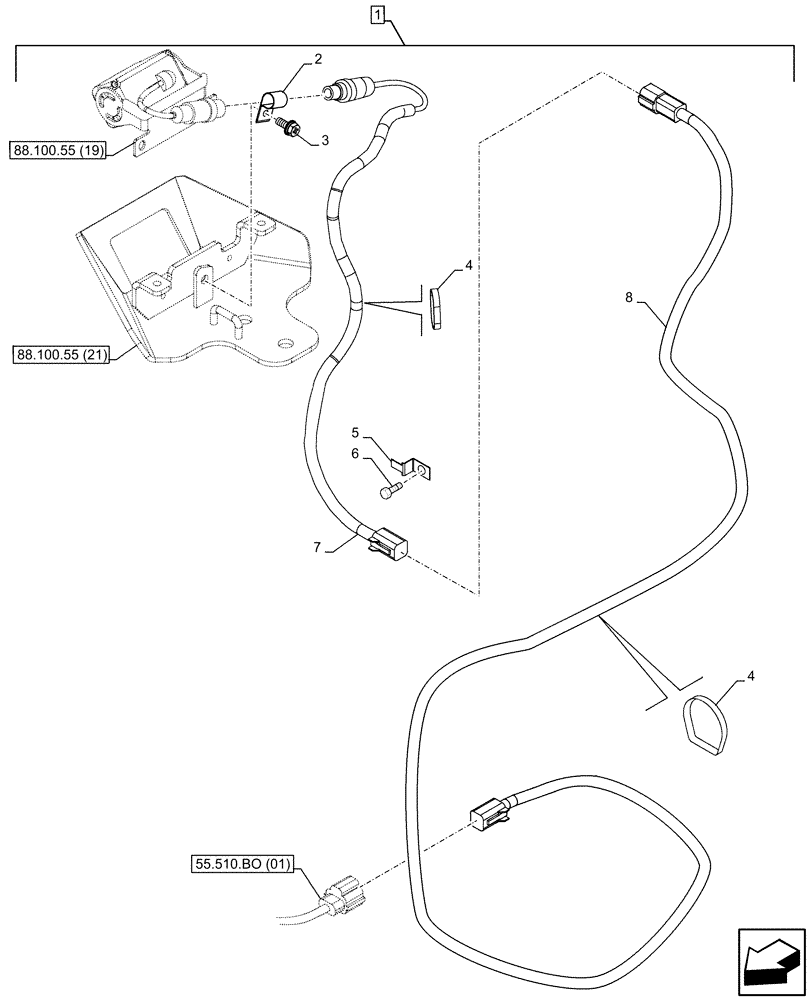

Схема запчастей Case CX300D LC - (88.100.55[20]) - DIA KIT, RIGHT, SIDE CAMERA, WIRE HARNESS (88) - ACCESSORIES
88.100.55 (19)
3
55.510.bo (01)
1
2
5
88.100.55 (21)
8
6
4
7
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP524-00

CONSTRUCTION DIA

Right Side Camera, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

157806A1

COLLAR

1шт.

3

KHN2132

BOLT,Hex Flg Hd, M6 x 16

M6 x 16mm

1шт.

4

150496A1

MOUNTING CLIP

250mm

36шт.

5

165405A1

CLIP

1шт.

6

159602A1

BOLT,Sems, Hex, M6 x 16mm

M6 x 16mm

1шт.

7

KHR40540

WIRE HARNESS

1шт.

8

KHR39710

WIRE HARNESS

1шт.
