(10.304.AF[01]) - ENGINE OIL FILTER, LINES

Запчасти Case CX300D LC (10.304.AF[01]) - ENGINE OIL FILTER, LINES (10) - ENGINE

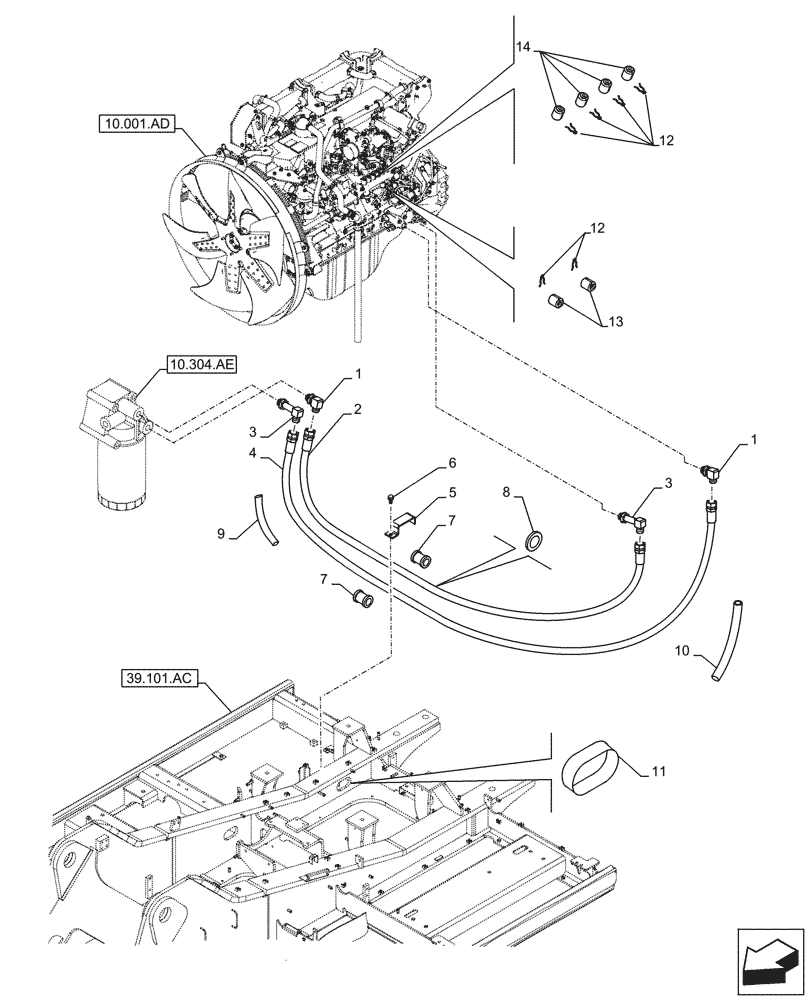

Схема запчастей Case CX300D LC - (10.304.AF[01]) - ENGINE OIL FILTER, LINES (10) - ENGINE
39.101.ac
9
12
7
1
10.001.ad
7
14
6
13
5
4
2
10.304.ae
11
3
10
8
12
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHH14660

ELBOW

G3/4XG3/4

2шт.

2

KBH15180

HYDRAULIC HOSE

19 X 1050mm

1шт.

3

KHH14690

ELBOW

G3/4

2шт.

4

KSH12960

HYDRAULIC HOSE

1шт.

5

KHH13550

BRACKET

1шт.

6

166052A1

BOLT

M10 X 25mm

1шт.

7

KHJ2023

HOSE CLAMP

FAI 28

2шт.

8

150496A1

MOUNTING CLIP

250mm

8шт.

9

166123A1

PLASTIC-RUBBER TUBE

28 X 300mm For Hydraulic Hose KBH15180 and KSH12690

2шт.

10

KHR21080

PLASTIC-RUBBER TUBE

28 X 400mm For Hydraulic Hose KBH15180 and KSH12690

2шт.

11

MMA1011

RUBBER SEAL

1шт.

12

KHH14600

LOCK PIN

8шт.

13

KHH14570

CAP

2шт.

14

KHH14590

CAP

6шт.
