(88.100.35[233]) - DIA KIT, QUICK COUPLER, BOOM, W/ SECOND OPTION, HYDRAULIC LINE

Запчасти Case CX300D LC (88.100.35[233]) - DIA KIT, QUICK COUPLER, BOOM, W/ SECOND OPTION, HYDRAULIC LINE (88) - ACCESSORIES

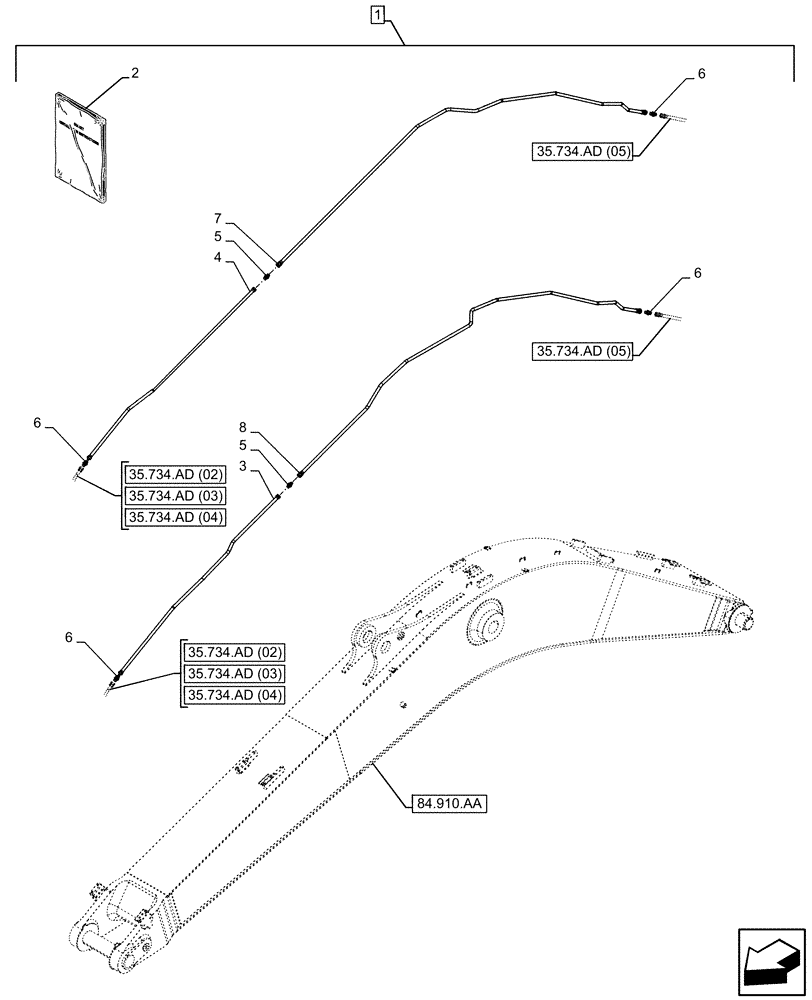

Схема запчастей Case CX300D LC - (88.100.35[233]) - DIA KIT, QUICK COUPLER, BOOM, W/ SECOND OPTION, HYDRAULIC LINE (88) - ACCESSORIES
35.734.ad (05)
6
6
35.734.ad (05)
8
2
35.734.ad (02)
6
35.734.ad (04)
35.734.ad (02)
35.734.ad (04)
35.734.ad (03)
3
1
6
35.734.ad (03)
5
5
4
7
84.910.aa
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP626-00

CONSTRUCTION DIA

Quick Coupler Line, Boom, Second option, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47928805

INSTRUCTION

1шт.

2

47929353

INSTRUCTION

1шт.

3

KBV40840

HYD TUBE

LH

1шт.

4

KBV40850

HYD TUBE

RH

1шт.

5

163029A1

UNION

2шт.

6

163065A1

UNION

4шт.

7

KBV38890

HYD TUBE

RH

1шт.

8

KBV38880

HYD TUBE

LH

1шт.
