(88.100.35[223]) - DIA KIT, QUICK COUPLER, SOLENOID VALVE, HYDRAULIC LINE

Запчасти Case CX300D LC (88.100.35[223]) - DIA KIT, QUICK COUPLER, SOLENOID VALVE, HYDRAULIC LINE (88) - ACCESSORIES

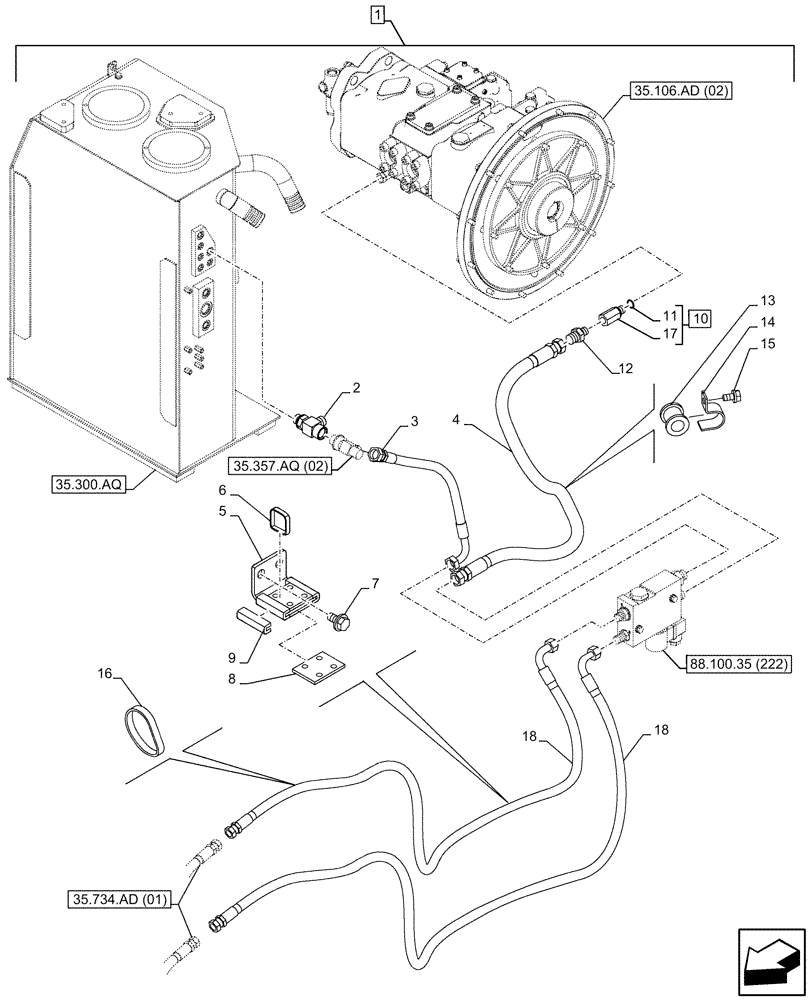

Схема запчастей Case CX300D LC - (88.100.35[223]) - DIA KIT, QUICK COUPLER, SOLENOID VALVE, HYDRAULIC LINE (88) - ACCESSORIES
35.106.ad (02)
2
7
16
12
11
18
9
35.734.ad (01)
35.357.aq (02)
6
88.100.35 (222)
8
5
18
35.300.aq
4
3
14
17
1
15
10
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP624-00

CONSTRUCTION DIA

Quick Coupler Line, Incl 2 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ31880

TEE

G 3/8"

1шт.

3

KHJ1168

HYDRAULIC HOSE,9.52 mm ID x 350.00 mm

9mm ID x 350mm

1шт.

4

KBJ25010

HYDRAULIC HOSE

9mm ID x 1020mm

1шт.

5

KBJ25040

BRACKET

1шт.

6

150071A1

MOUNTING CLIP

380mm

4шт.

7

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

8

KBJ25050

PLATE

2шт.

9

HKR0009

SEAL PROTECTION

60mm

2шт.

10

162525A1

STUD

ASSY, G1/4", Incl 11, 17

1шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

12

KNJ1106

HYD CONNECTOR

G1/4" x G3/8"

1шт.

13

HEJ0121

COLLAR

1шт.

14

169267A1

CLAMP

1шт.

15

166351A1

BOLT,Sems, M10 x 20mm

1шт.

16

150496A1

MOUNTING CLIP

250mm

2шт.

17

NSS

NOT SOLD SEPARAT

Stud, Incl in 10

1шт.

18

KHJ33900

HYDRAULIC HOSE

2шт.
