Запчасти Case CX300D LC (88.100.35[222]) - DIA KIT, QUICK COUPLER, SOLENOID VALVE, WIRE HARNESS (88) - ACCESSORIES

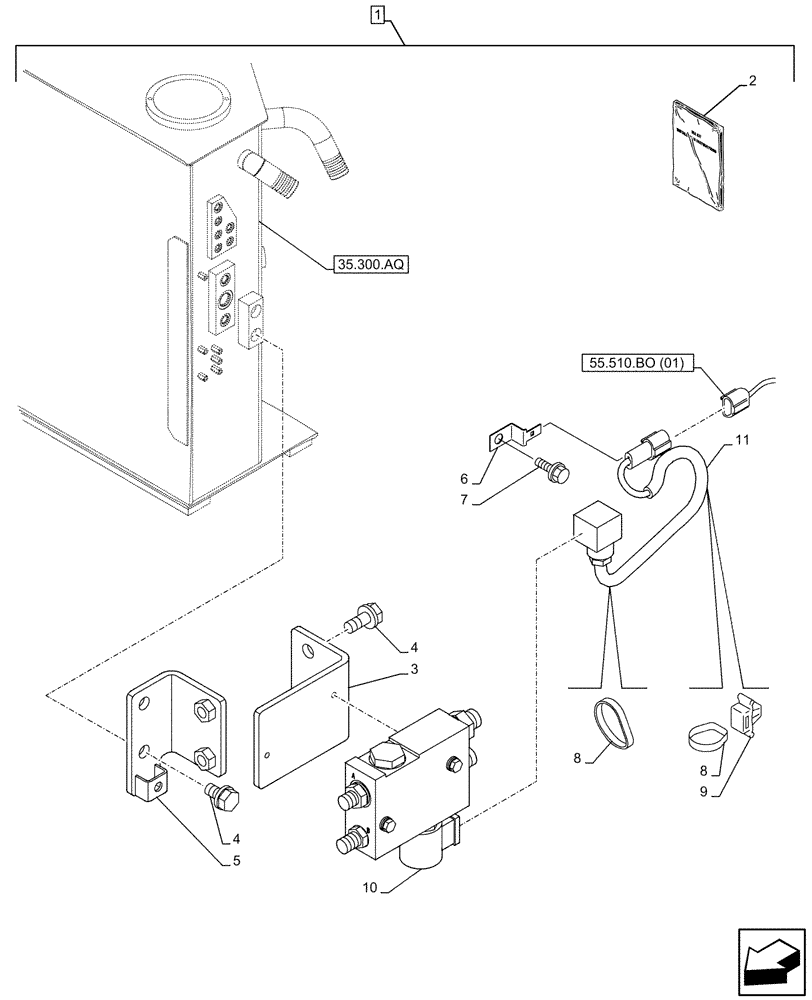

Схема запчастей Case CX300D LC - (88.100.35[222]) - DIA KIT, QUICK COUPLER, SOLENOID VALVE, WIRE HARNESS (88) - ACCESSORIES
11
1
55.510.bo (01)
2
8
7
35.300.aq
10
4
5
6
9
8
3
4

Артикул

Название

Примечание

Количество

1

KG1BP624-00

CONSTRUCTION DIA

Quick Coupler Line, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47928802

INSTRUCTION

1шт.

2

47929351

INSTRUCTION

1шт.

3

KBJ25030

BRACKET

1шт.

4

166052A1

BOLT

M10 x 25mm

4шт.

5

KBJ25020

BRACKET

1шт.

6

158962A1

CLIP

1шт.

7

167518A1

BOLT

M8 x 16mm

1шт.

8

150496A1

MOUNTING CLIP

250mm

2шт.

9

KHR10220

MOUNTING CLIP

1шт.

10

KHJ29790

VALVE

1шт.

11

KHR39410

WIRE HARNESS

1шт.

Выбрано товаров: 13
