(88.100.35[215]) - DIA KIT, SAFETY VALVE, BOOM, CLAMP

Запчасти Case CX300D LC (88.100.35[215]) - DIA KIT, SAFETY VALVE, BOOM, CLAMP (88) - ACCESSORIES

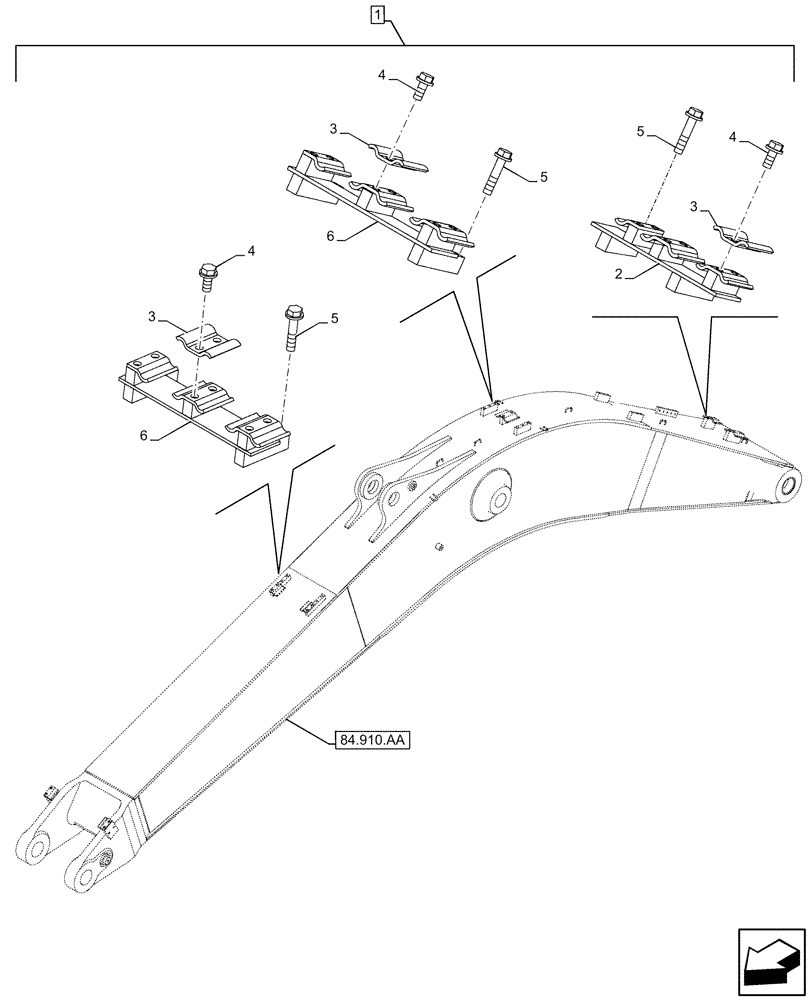

Схема запчастей Case CX300D LC - (88.100.35[215]) - DIA KIT, SAFETY VALVE, BOOM, CLAMP (88) - ACCESSORIES
2
3
3
6
5
5
4
3
6
4
1
4
84.910.aa
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP530-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KBV18720

BAR

1шт.

3

KHV10520

COLLAR CLAMP

3шт.

4

166352A1

BOLT

6шт.

5

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

6шт.

6

KBV18730

BAR

2шт.
