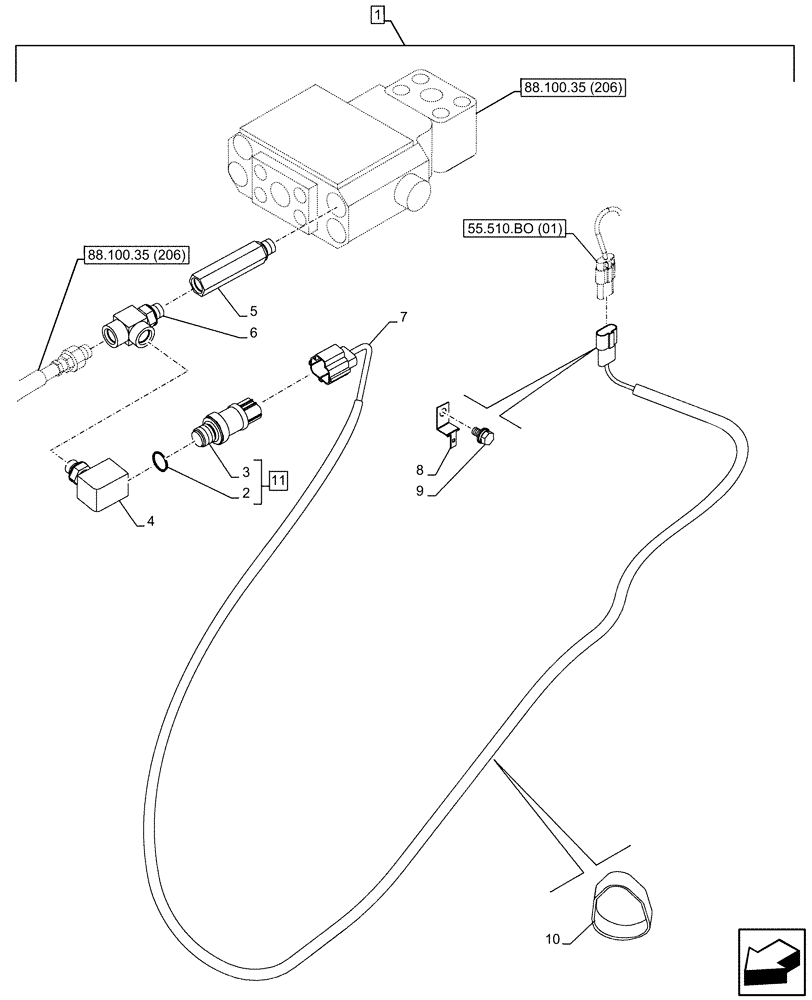

Запчасти Case CX300D LC (88.100.35[213]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, WIRE HARNESS, PRESSURE SWITCH (88) - ACCESSORIES

1

KG1BP530-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

154483A1

O-RING

1шт.

3

NSS

NOT SOLD SEPARAT

Sensor, Incl in 11

1шт.

4

KHJ31800

ELBOW

G1/4" x M18mm

1шт.

5

AEV11900

STUD

1шт.

6

KHJ12530

TEE

G1/4"

1шт.

7

KHR11650

WIRE HARNESS

Safety Valve, Overload Alarm

1шт.

8

158962A1

CLIP

1шт.

9

167518A1

BOLT

M8 x 16mm

1шт.

10

150496A1

MOUNTING CLIP

250mm

2шт.

11

KHR41950

SENSOR

ASSY, Pressure, 50MPa, Incl 2, 3

1шт.
