(88.100.35[212]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE

Запчасти Case CX300D LC (88.100.35[212]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

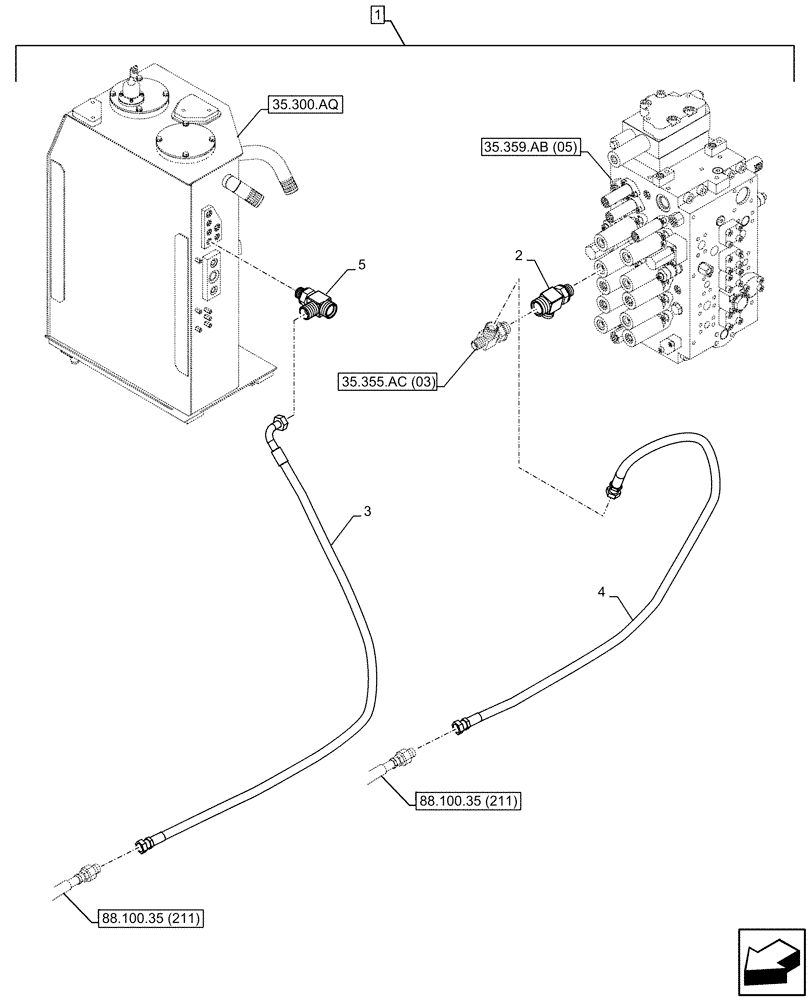

Схема запчастей Case CX300D LC - (88.100.35[212]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES
88.100.35 (211)
35.359.ab (05)
4
3
35.355.ac (03)
88.100.35 (211)
2
5
1
35.300.aq
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP530-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ31880

TEE

G3/8"

1шт.

3

KHJ34060

HYDRAULIC HOSE

9 x 2350mm

1шт.

4

KHJ33180

HYDRAULIC HOSE

1шт.

5

KHJ11560

TEE

G1/4" x G3/8" x G1/4"

1шт.

Выбрано товаров: 6
