(88.100.35[210]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE

Запчасти Case CX300D LC (88.100.35[210]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

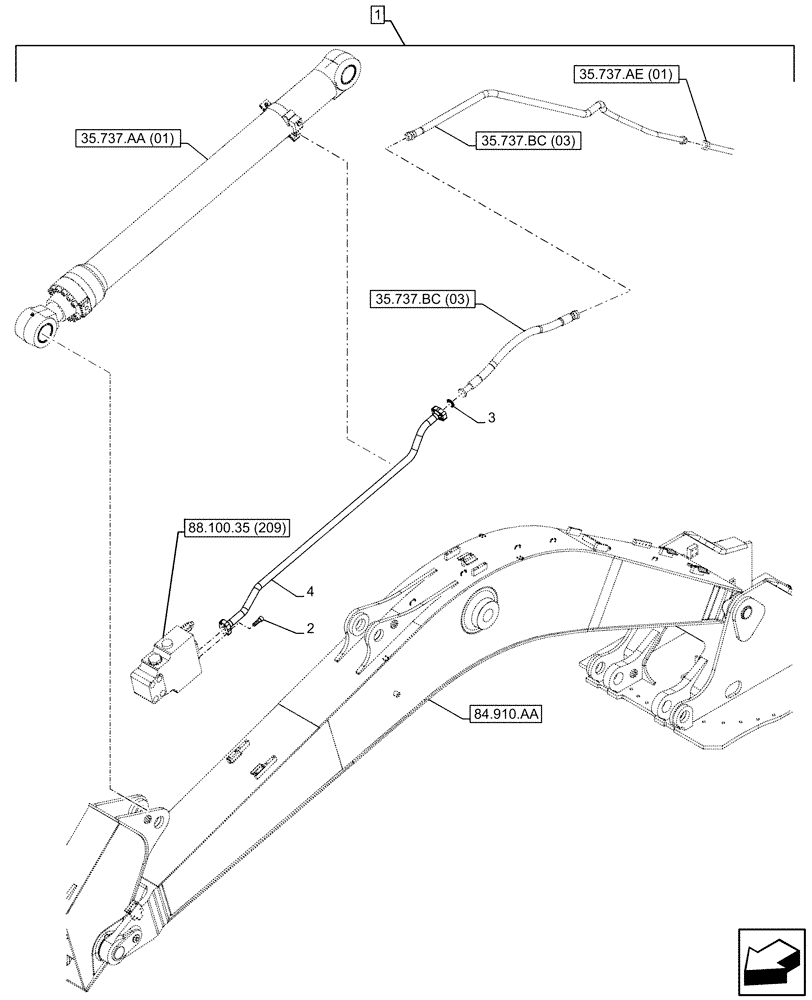

Схема запчастей Case CX300D LC - (88.100.35[210]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES
35.737.bc (03)
35.737.aa (01)
3
35.737.bc (03)
4
84.910.aa
88.100.35 (209)
35.737.ae (01)
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP530-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

3

155211A1

O-RING

1шт.

4

KBV35830

PIPE

1шт.

Выбрано товаров: 5
