(88.100.35[209]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE

Запчасти Case CX300D LC (88.100.35[209]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE (88) - ACCESSORIES

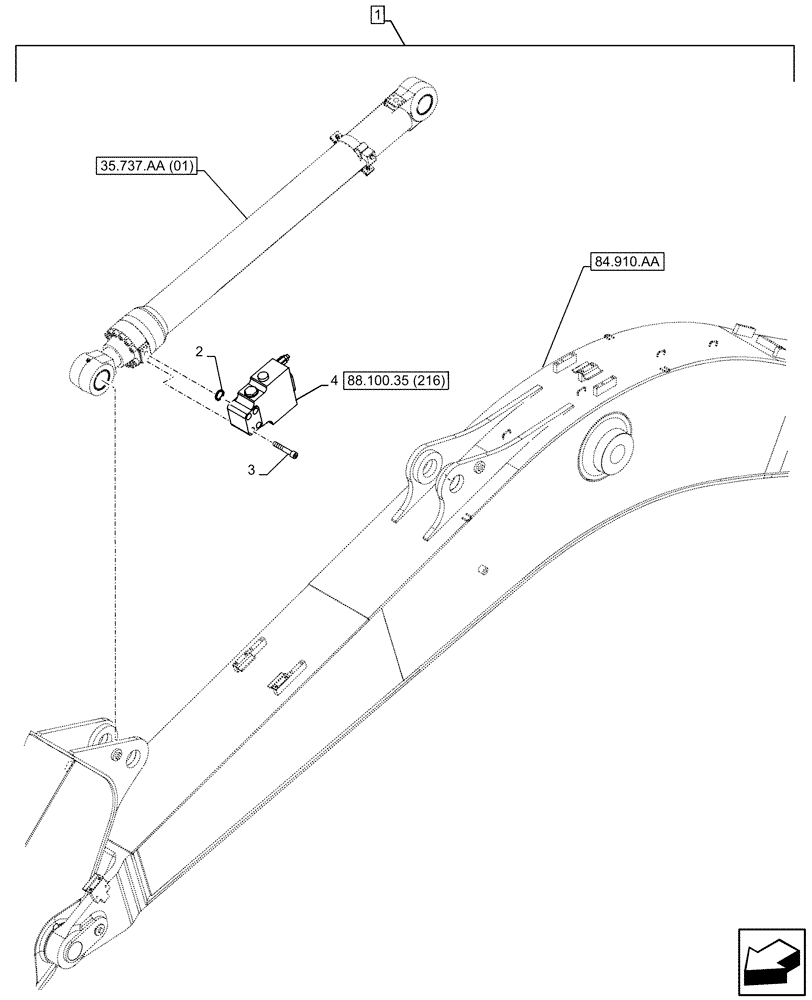

Схема запчастей Case CX300D LC - (88.100.35[209]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE (88) - ACCESSORIES
2
88.100.35 (216)
84.910.aa
4
1
3
35.737.aa (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP530-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

155211A1

O-RING

1шт.

3

862-12070

HEX SOC SCREW,M12 x 70mm, Cl 12.9

M12 x 70mm

4шт.

4

KSV17260

SAFETY VALVE

ASSY

1шт.
