(88.100.35[208]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, LINE

Запчасти Case CX300D LC (88.100.35[208]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

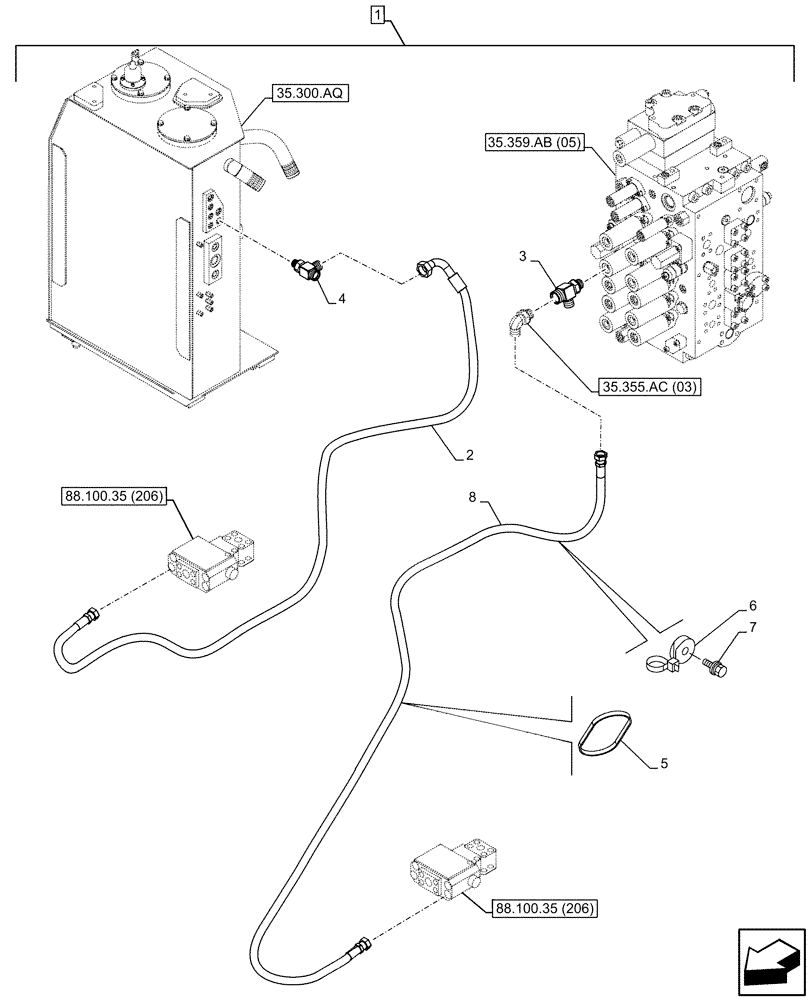

Схема запчастей Case CX300D LC - (88.100.35[208]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES
5
35.355.ac (03)
4
7
2
8
1
88.100.35 (206)
35.300.aq
35.359.ab (05)
6
3
88.100.35 (206)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP530-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ33850

HYDRAULIC HOSE

9 x 3500mm

1шт.

3

KHJ31880

TEE

G3/8"

1шт.

4

KHJ11560

TEE

G1/4" x G3/8" x G1/4"

1шт.

5

150496A1

MOUNTING CLIP

24шт.

6

KHR2584

CLAMP

1шт.

7

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

8

KHJ34070

HYDRAULIC HOSE

9 x 3350mm

1шт.
