(88.100.35[206]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, LINE

Запчасти Case CX300D LC (88.100.35[206]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

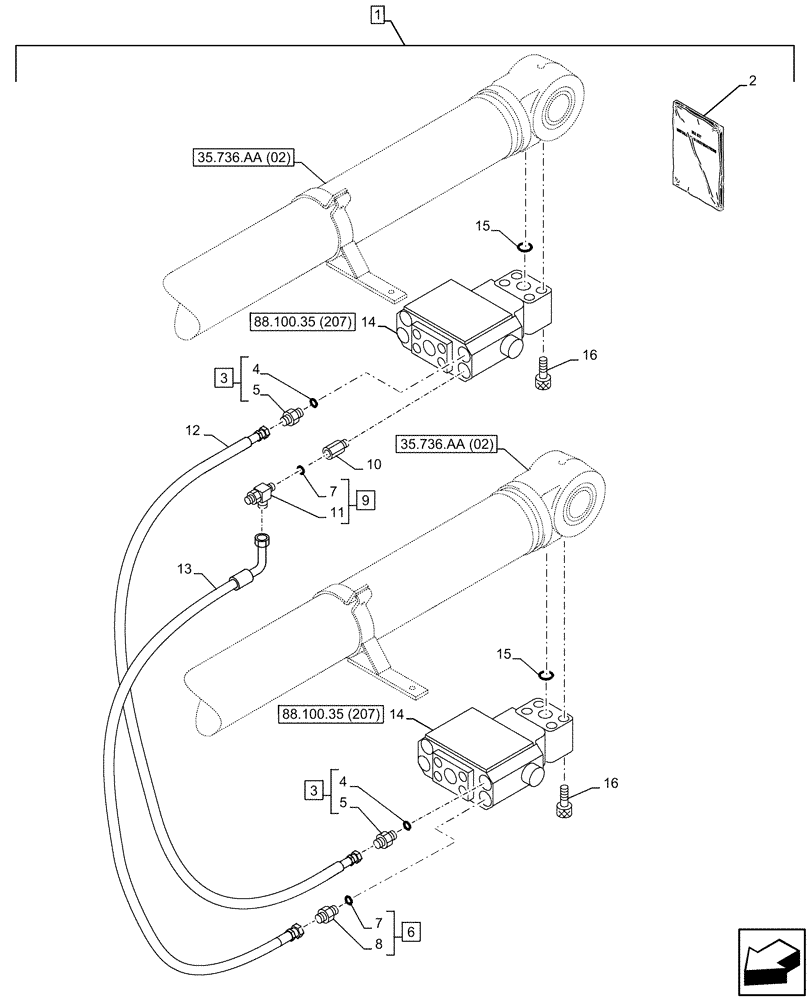

Схема запчастей Case CX300D LC - (88.100.35[206]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES
15
13
4
15
14
3
9
1
12
16
6
35.736.aa (02)
14
8
7
3
88.100.35 (207)
16
88.100.35 (207)
11
2
4
7
5
5
35.736.aa (02)
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP530-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47880500

INSTRUCTION

1шт.

2

47840889

INSTRUCTION

1шт.

3

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 4, 5

2шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

2шт.

6

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 7 (Qty 1), 8

1шт.

7

154475A1

O-RING

2шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

9

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, Incl 7 (Qty 1), 11

1шт.

10

KHV0373

STUD

1шт.

11

NSS

NOT SOLD SEPARAT

Tee, Incl in 9

1шт.

12

KBV15170

HYDRAULIC HOSE

1200mm

1шт.

13

KHJ15360

HYDRAULIC HOSE

9mm ID x 1200mm

1шт.

14

KRV11110

VALVE SECTION

ASSY

2шт.

15

155210A1

O-RING

2шт.

16

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

8шт.
