(88.100.35[202]) - DIA KIT, FREE SWING, LOCKOUT SOLENOID VALVE, WIRE HARNESS

Запчасти Case CX300D LC (88.100.35[202]) - DIA KIT, FREE SWING, LOCKOUT SOLENOID VALVE, WIRE HARNESS (88) - ACCESSORIES

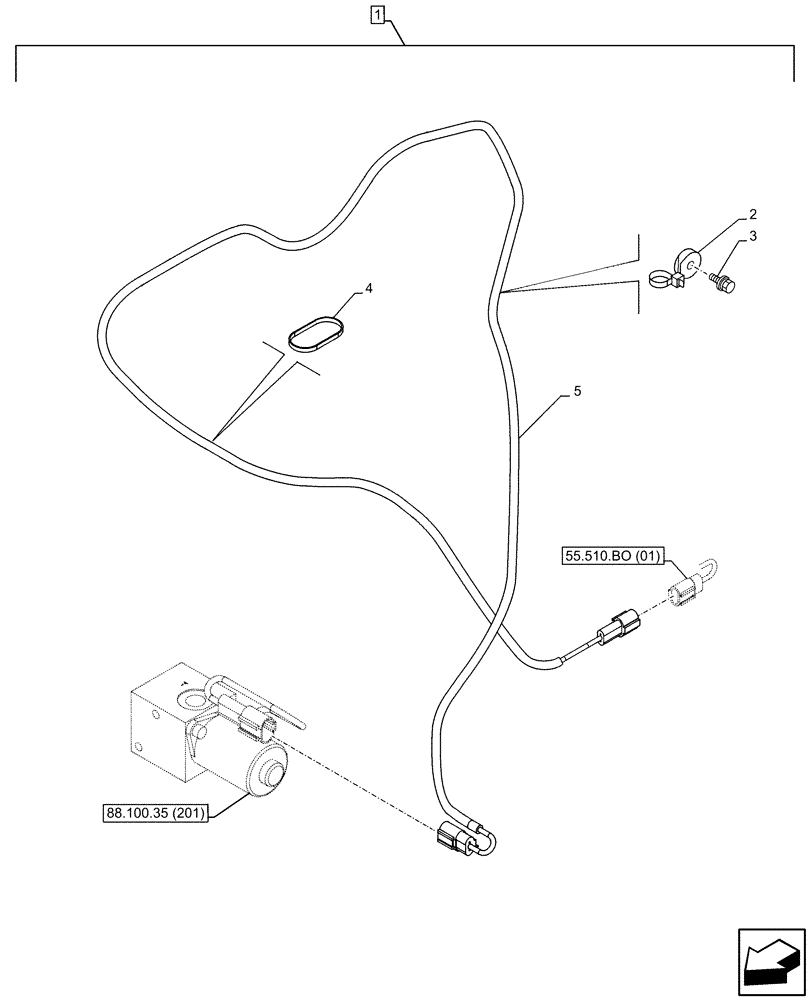

Схема запчастей Case CX300D LC - (88.100.35[202]) - DIA KIT, FREE SWING, LOCKOUT SOLENOID VALVE, WIRE HARNESS (88) - ACCESSORIES
2
5
55.510.bo (01)
3
1
88.100.35 (201)
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP523-00

CONSTRUCTION DIA

Free Swing Line, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHR2584

CLAMP

2шт.

3

KHJ1215

BOLT,Spcl

2шт.

4

150496A1

MOUNTING CLIP

3шт.

5

KHR39870

WIRE HARNESS

1шт.

Выбрано товаров: 6
