(88.100.35[201]) - DIA KIT, FREE SWING, MOTO-REDUCTION GEAR, LOCKOUT SOLENOID VALVE, LINE

Запчасти Case CX300D LC (88.100.35[201]) - DIA KIT, FREE SWING, MOTO-REDUCTION GEAR, LOCKOUT SOLENOID VALVE, LINE (88) - ACCESSORIES

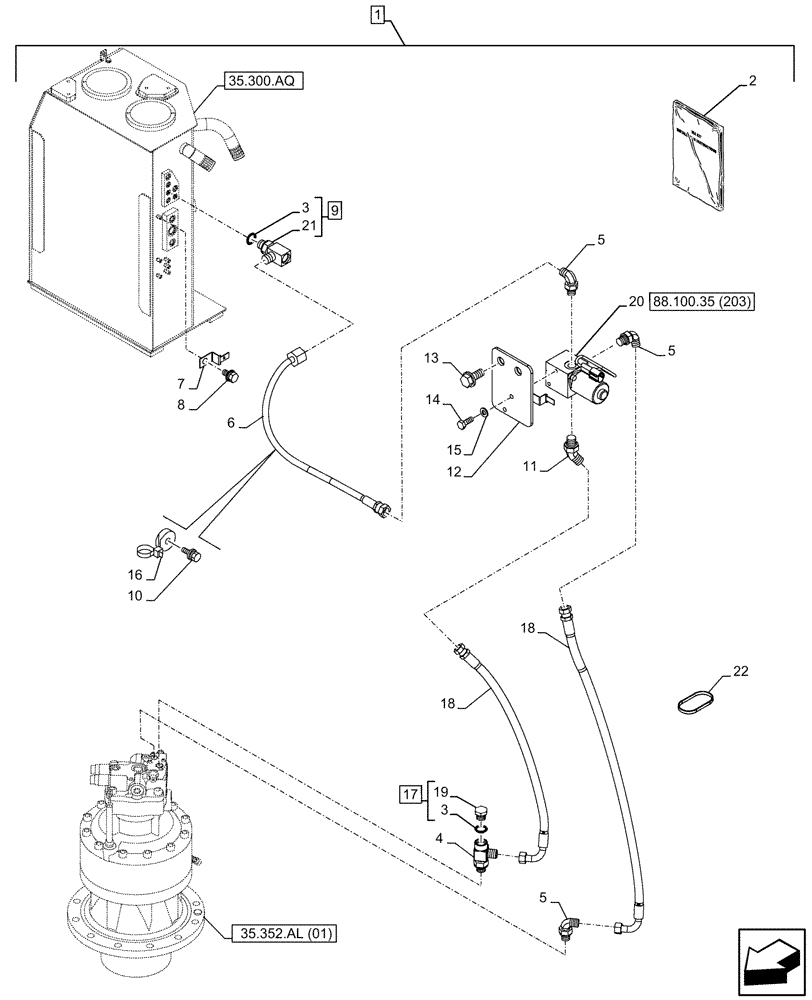

Схема запчастей Case CX300D LC - (88.100.35[201]) - DIA KIT, FREE SWING, MOTO-REDUCTION GEAR, LOCKOUT SOLENOID VALVE, LINE (88) - ACCESSORIES
35.352.al (01)
4
88.100.35 (203)
35.300.aq
13
14
5
18
3
22
19
5
6
18
10
1
21
9
7
3
17
15
12
16
2
8
11
20
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP523-00

CONSTRUCTION DIA

Free Swing Line, Incl 2 - 22

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47789447

INSTRUCTION

1шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

4

KHJ11640

ORIFICE

1шт.

5

KHJ28580

ELBOW

G1/4" x G1/4"

3шт.

6

KHJ2245

HOSE

6mm ID x 850mm

1шт.

7

158962A1

CLIP

1шт.

8

167518A1

BOLT

M8 x 16mm

1шт.

9

KHJ2773

TEE

ASSY, Incl 3 (Qty 1), 21

1шт.

10

KHJ1215

BOLT,Spcl

M8 x 25mm

2шт.

11

KHJ28630

ELBOW

G1/4" x G1/4"

1шт.

12

KBJ23740

BRACKET

1шт.

13

166352A1

BOLT

M12 x 30mm

2шт.

14

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

15

183-106VR

SPRING WASHER

2шт.

16

KHR2584

CLAMP

2шт.

17

159002A1

PLUG

ASSY, Incl 3 (Qty 1), 19

1шт.

18

KHJ26560

HYDRAULIC HOSE

06mm ID x 260mm

2шт.

19

NSS

NOT SOLD SEPARAT

Plug, Incl in 17

1шт.

20

159205A1

VALVE

ASSY

1шт.

21

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

22

150496A1

MOUNTING CLIP

3шт.
