(88.100.35[172]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE, PLUG

Запчасти Case CX300D LC (88.100.35[172]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE, PLUG (88) - ACCESSORIES

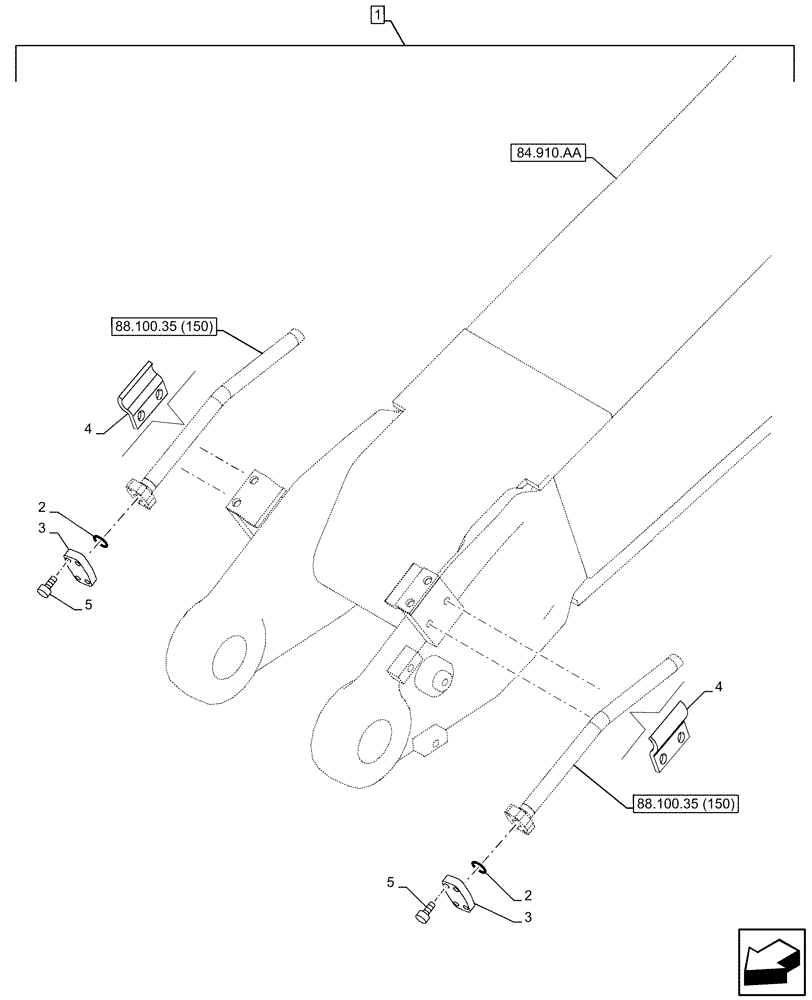

Схема запчастей Case CX300D LC - (88.100.35[172]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE, PLUG (88) - ACCESSORIES
5
2
84.910.aa
88.100.35 (150)
4
5
2
3
88.100.35 (150)
3
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP516-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

164450A1

O-RING

2шт.

3

KUP0009

FLANGE

2шт.

4

KHV11070

COLLAR CLAMP

2шт.

5

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

8шт.
