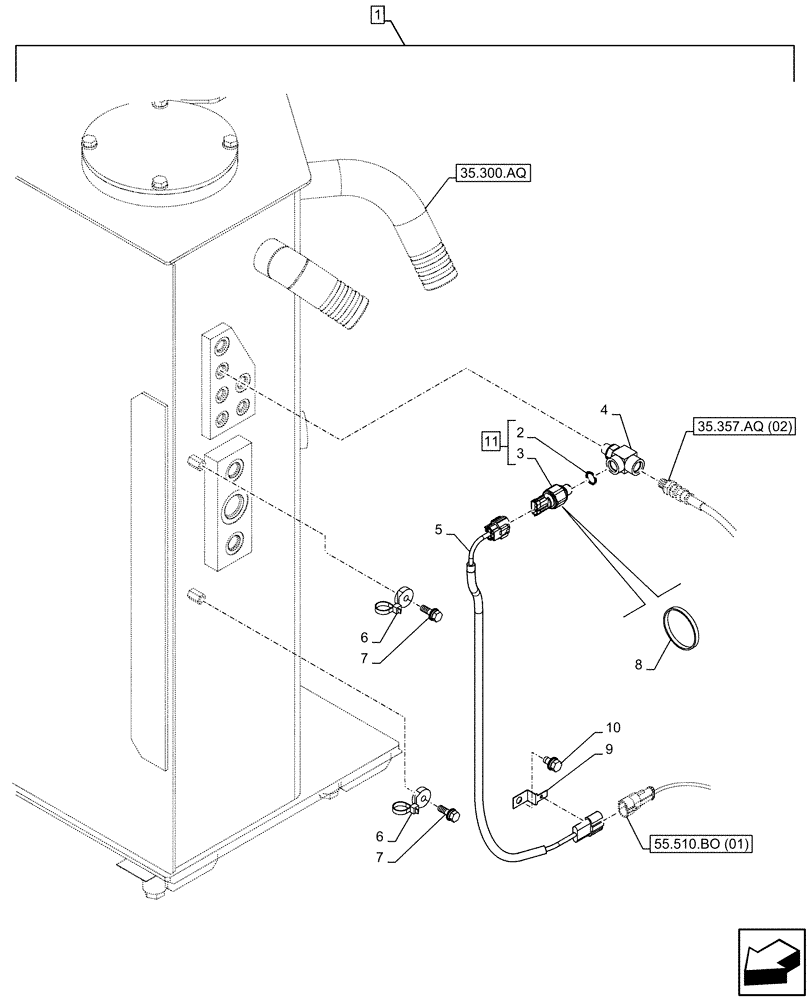

Запчасти Case CX300D LC (88.100.35[169]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, PRESSURE SWITCH (88) - ACCESSORIES

1

KG1BP516-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

NSS

NOT SOLD SEPARAT

Sensor, Incl in 11

1шт.

4

KHJ12530

TEE

G1/4"

1шт.

5

KHR33580

HARNESS

1шт.

6

KHR2584

CLAMP

M8

2шт.

7

KHJ1215

BOLT,Spcl

M8 x 25mm

2шт.

8

150496A1

MOUNTING CLIP

250mm

1шт.

9

158962A1

CLIP

1шт.

10

167518A1

BOLT

M8 x 16mm

1шт.

11

KHR32870

SENSOR

ASSY, Pressure, 1MPa, G1/4", Incl 2, 3

1шт.
