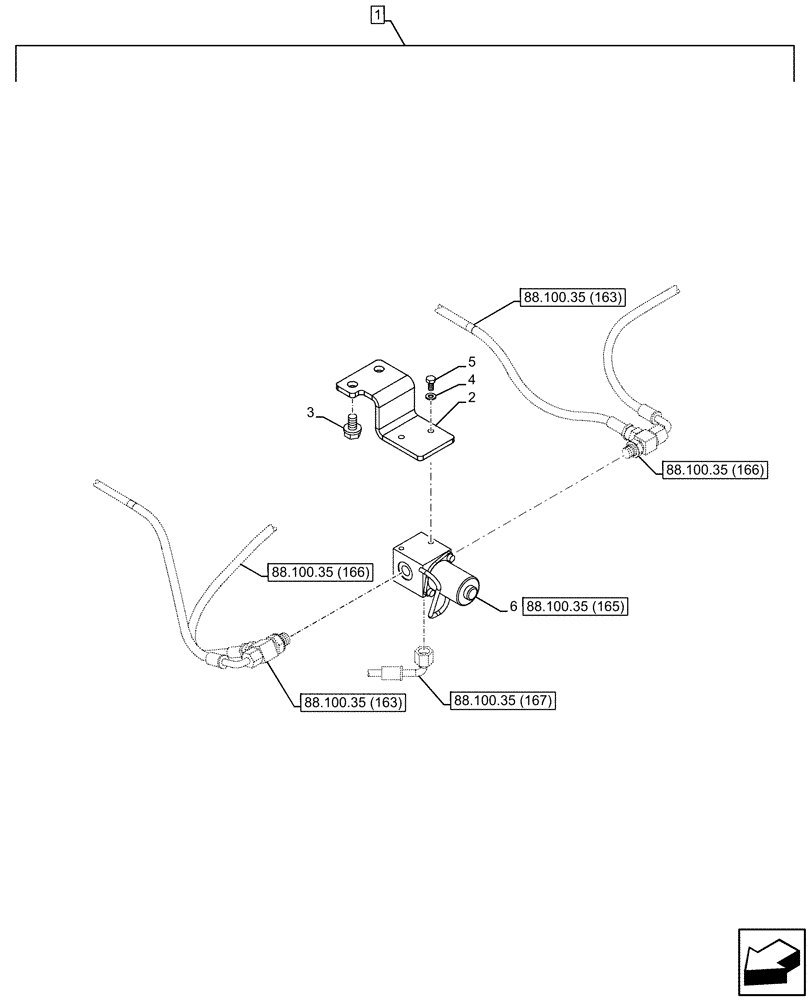

Запчасти Case CX300D LC (88.100.35[164]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE (88) - ACCESSORIES

1

KG1BP516-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ30520

BRACKET

1шт.

3

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20mm

2шт.

4

183-106VR

SPRING WASHER

2шт.

5

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

6

162538A1

VALVE

ASSY, Solenoid

1шт.
