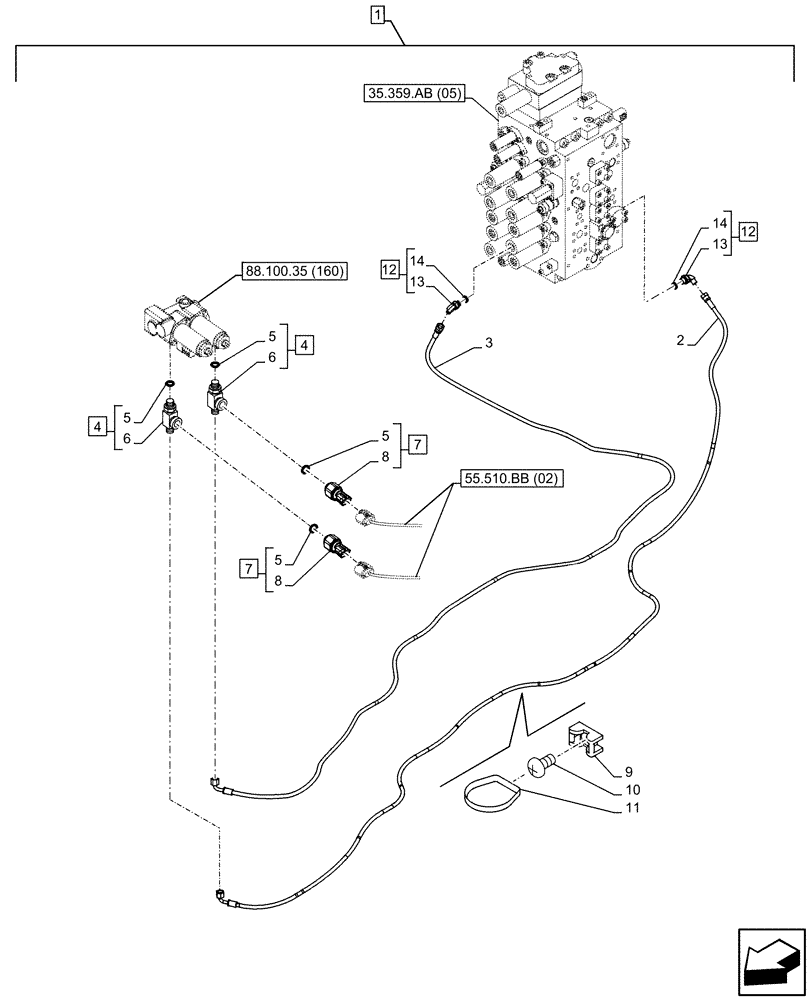

Запчасти Case CX300D LC (88.100.35[162]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE, PRESSURE RELIEF VALVE, SENSOR (88) - ACCESSORIES

1

KG1BP516-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ17550

HOSE

6 x 3350mm

1шт.

3

KHJ15160

HYDRAULIC HOSE

6 x 3800mm

1шт.

4

167666A1

FITTING

ASSY, Incl 5 (Qty 2), 6

2шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

2шт.

7

KHR26940

SENSOR

ASSY, Pressure, Incl 5 (Qty 2), 8

2шт.

8

NSS

NOT SOLD SEPARAT

Sensor, Incl in 7

2шт.

9

150860A1

COLLAR

4шт.

10

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

4шт.

11

150496A1

MOUNTING CLIP

250mm

4шт.

12

KHJ28690

ELBOW

ASSY, G3/8" x G1/4", Incl 13, 14

2шт.

13

NSS

NOT SOLD SEPARAT

Elbow, Incl in 12

2шт.

14

154475A1

O-RING

2шт.
