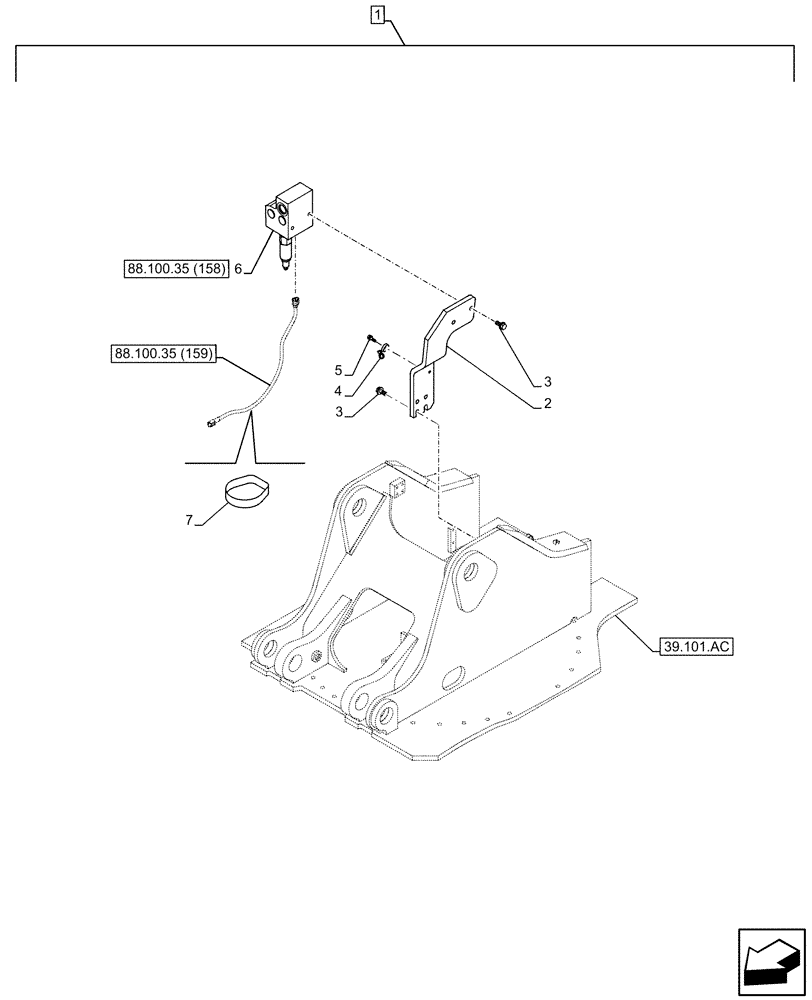

Запчасти Case CX300D LC (88.100.35[157]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, RELIEF VALVE (88) - ACCESSORIES

1

KG1BP516-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KBJ15210

BRACKET

1шт.

3

166352A1

BOLT

M12 x 30mm

6шт.

4

KHR2584

CLAMP

M8

1шт.

5

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

6

KHJ27370

VALVE

ASSY, Electromagnetic Inversely Proportional

1шт.

7

150496A1

MOUNTING CLIP

250mm

4шт.
