(88.100.35[156]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, DIRECTIONAL CONTROL VALVE, RELIEF VALVE, LINE

Запчасти Case CX300D LC (88.100.35[156]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, DIRECTIONAL CONTROL VALVE, RELIEF VALVE, LINE (88) - ACCESSORIES

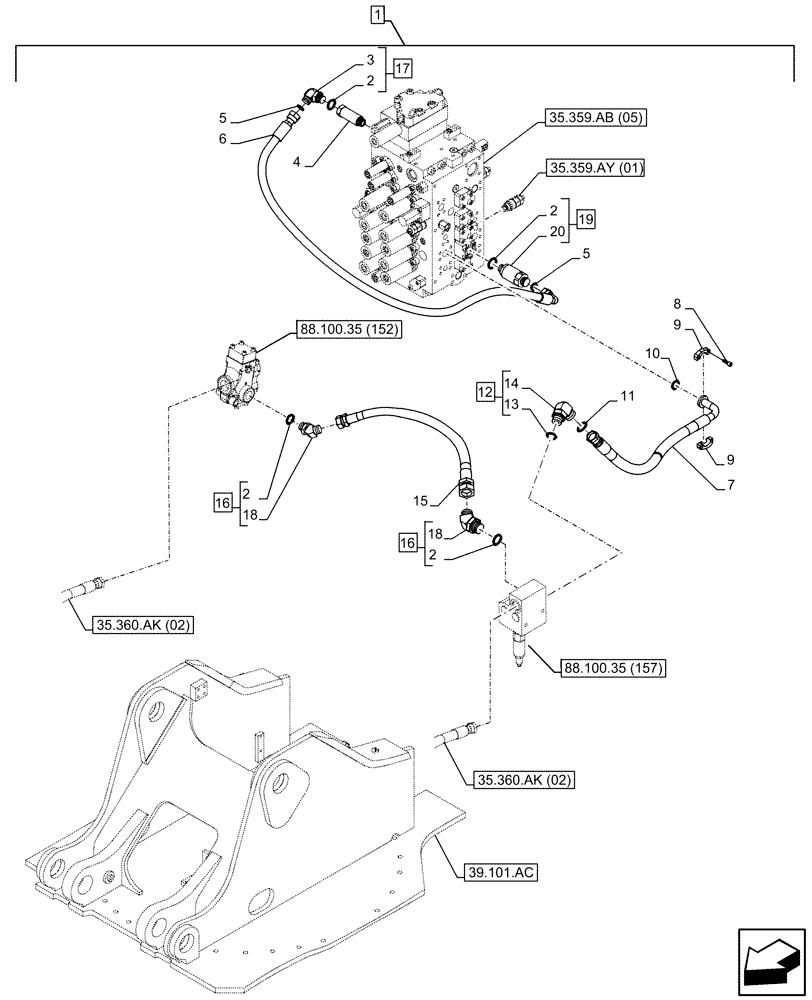

Схема запчастей Case CX300D LC - (88.100.35[156]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, DIRECTIONAL CONTROL VALVE, RELIEF VALVE, LINE (88) - ACCESSORIES
5
10
17
9
88.100.35 (152)
2
12
11
7
2
2
3
1
9
88.100.35 (157)
16
39.101.ac
18
8
16
5
6
35.359.ab (05)
35.359.ay (01)
35.360.ak (02)
15
4
19
18
35.360.ak (02)
2
13
14
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP516-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 20

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

154503A1

O-RING

4шт.

3

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 17

1шт.

4

KHJ26310

STUD

1шт.

5

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

6

KBJ12520

HYDRAULIC HOSE,19.00 mm ID x 1250.00 mm

1шт.

7

KBJ20200

HYDRAULIC HOSE

1шт.

8

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

9

153459A1

FLANGE

2шт.

10

155211A1

O-RING

1шт.

11

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

12

KHJ1805

ELBOW

ASSY, Incl 13, 14

1шт.

13

154523A1

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 12

1шт.

15

KRJ5869

HYDRAULIC HOSE,19.00 mm ID x 720.00 mm

1шт.

16

157586A1

ELBOW

ASSY, Incl 2 (Qty 2), 18

2шт.

17

KHJ1804

ELBOW

ASSY, Incl 2 (Qty 1), 3

1шт.

18

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 16

2шт.

19

KHJ10480

VALVE SECTION

ASSY, Incl 2 (Qty 1), 20

1шт.

20

NSS

NOT SOLD SEPARAT

Valve, Incl in 19

1шт.
