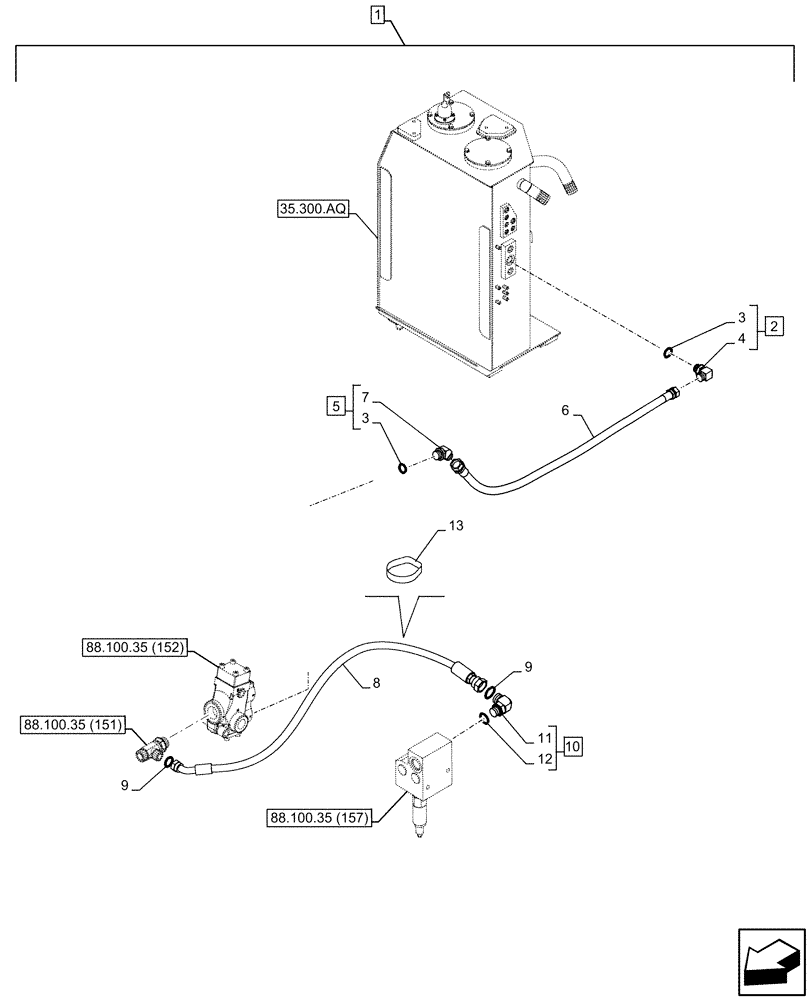

Запчасти Case CX300D LC (88.100.35[155]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, DIRECTIONAL CONTROL VALVE, LINE (88) - ACCESSORIES

1

KG1BP516-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

ASSY, Incl 3 (Qty 1), 4

1шт.

3

154523A1

O-RING

2шт.

4

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 2

1шт.

5

157587A1

ELBOW

ASSY, Incl 3 (Qty 1), 7

1шт.

6

KBJ19800

HYDRAULIC HOSE

1шт.

7

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 5

1шт.

8

KBJ16760

HYDRAULIC HOSE

750mm

1шт.

9

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

10

KHJ1804

ELBOW

ASSY, Incl 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

Elbow, Incl in 10

1шт.

12

154503A1

O-RING

1шт.

13

150496A1

MOUNTING CLIP

5шт.
