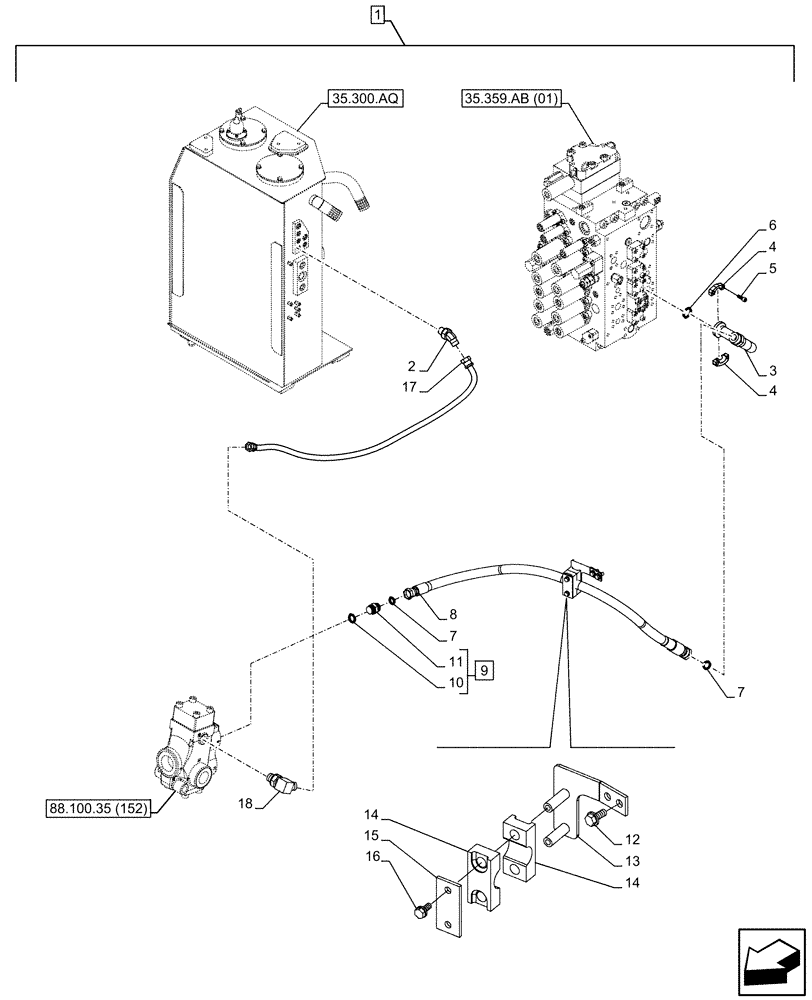

Запчасти Case CX300D LC (88.100.35[154]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, DIRECTIONAL CONTROL VALVE, LINE (88) - ACCESSORIES

1

KG1BP516-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ28630

ELBOW

G1/4" x G1/4"

1шт.

3

KBJ20180

TUBE

1шт.

4

153459A1

FLANGE

2шт.

5

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

6

155211A1

O-RING

1шт.

7

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

8

KSJ13320

HOSE ASSY.

1шт.

9

KHJ1349

ADAPTER

ASSY, Incl 10, 11

1шт.

10

154523A1

O-RING

1шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

12

166352A1

BOLT

M12 x 30mm

6шт.

13

KBJ23700

BRACKET

1шт.

14

KRJ11450

HOSE CLIP

2шт.

15

KRJ10800

PLATE

1шт.

16

166052A1

BOLT

M10 x 25mm

2шт.

17

KHJ2050

HOSE,6.3mm ID x 1000mm L

1шт.

18

KHJ28580

ELBOW

G1/4" x G1/4"

1шт.
