(88.100.35[152]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, DIRECTIONAL CONTROL VALVE

Запчасти Case CX300D LC (88.100.35[152]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, DIRECTIONAL CONTROL VALVE (88) - ACCESSORIES

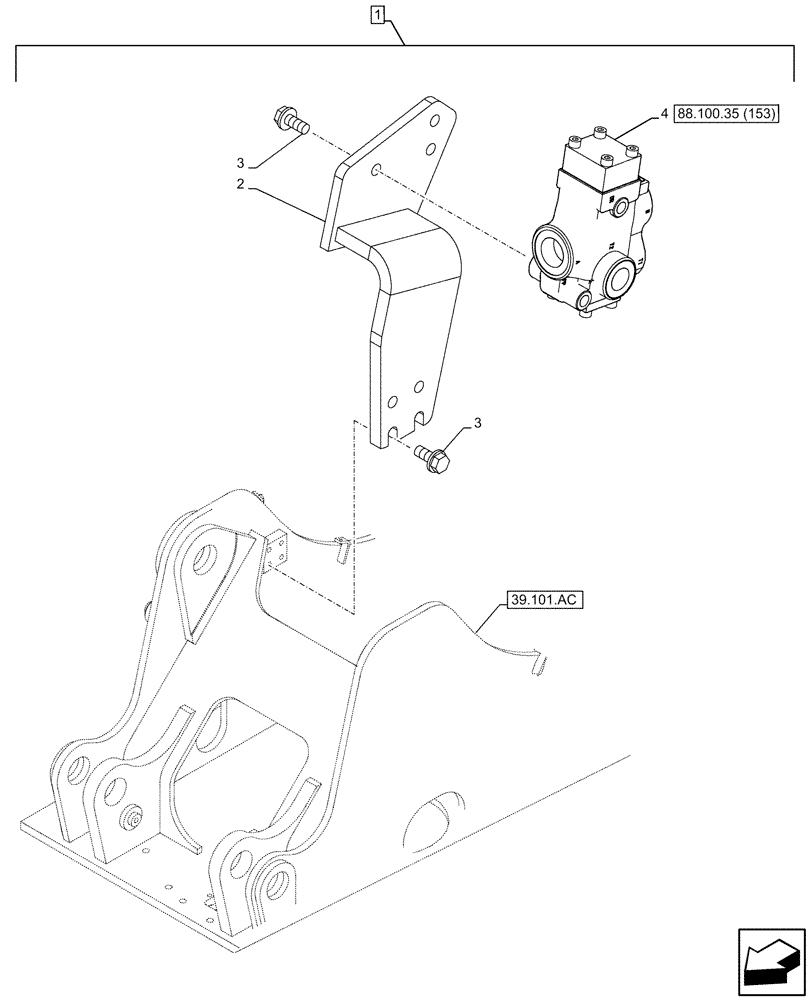

Схема запчастей Case CX300D LC - (88.100.35[152]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, DIRECTIONAL CONTROL VALVE (88) - ACCESSORIES
4
39.101.ac
2
88.100.35 (153)
3
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP516-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KBJ16300

BRACKET, SUPPORTING

1шт.

3

166352A1

BOLT

M12 x 30mm

6шт.

4

KHJ10420

VALVE SECTION

ASSY

1шт.
