(88.100.35[151]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE

Запчасти Case CX300D LC (88.100.35[151]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

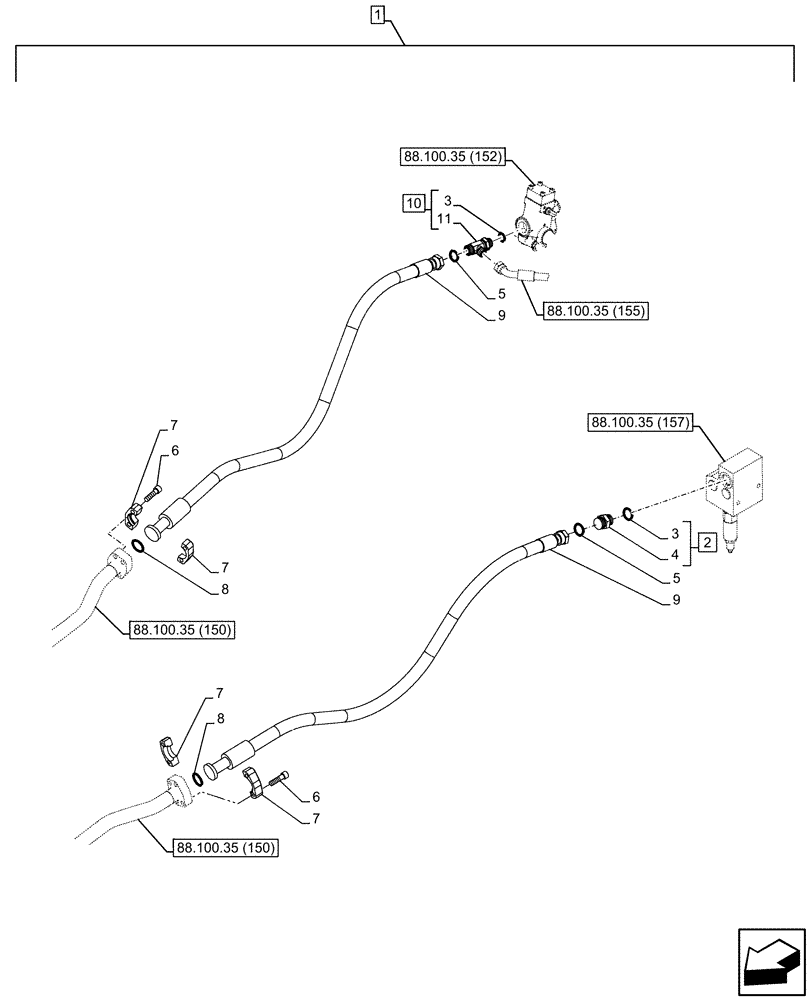

Схема запчастей Case CX300D LC - (88.100.35[151]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES
88.100.35 (157)
10
3
1
7
11
9
88.100.35 (152)
6
6
88.100.35 (155)
88.100.35 (150)
8
2
3
88.100.35 (150)
7
4
8
7
5
5
7
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP516-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ1349

ADAPTER

ASSY, Incl 3 (Qty 1), 4

1шт.

3

154523A1

O-RING

2шт.

4

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

1шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

6

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

8шт.

7

150124A1

FLANGE

4шт.

8

164450A1

O-RING

2шт.

9

KBJ11790

HYDRAULIC HOSE,25.40 mm ID x 1550.00 mm

2шт.

10

KHJ22660

TEE

ASSY, Incl 3 (Qty 1), 11

1шт.

11

NSS

NOT SOLD SEPARAT

Tee, Incl in 10

1шт.
