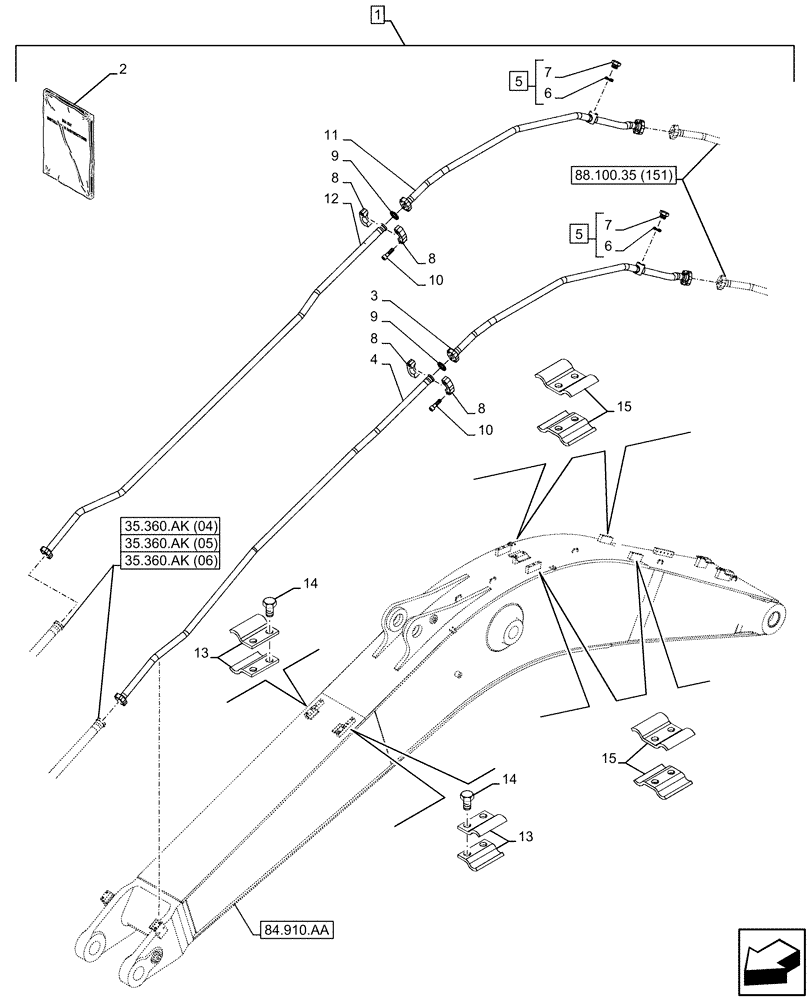

Запчасти Case CX300D LC (88.100.35[150]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

1

KG1BP516-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47789408

INSTRUCTION

1шт.

2

47789444

INSTRUCTION

1шт.

3

KBV37650

TUBE

LH

1шт.

4

KBV32410

PIPE

LH

1шт.

5

152924A1

PLUG

ASSY, Incl 6, 7

2шт.

6

154503A1

O-RING

2шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 5

2шт.

8

150124A1

FLANGE

4шт.

9

164450A1

O-RING

2шт.

10

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

M14 x 50mm

8шт.

11

KBV37660

TUBE

RH

1шт.

12

KBV32420

PIPE

RH

1шт.

13

KHV11060

COLLAR CLAMP

4шт.

14

166352A1

BOLT

M12 x 30mm

4шт.

15

KHV11050

COLLAR CLAMP

8шт.
