(88.100.35[111]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE

Запчасти Case CX300D LC (88.100.35[111]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE (88) - ACCESSORIES

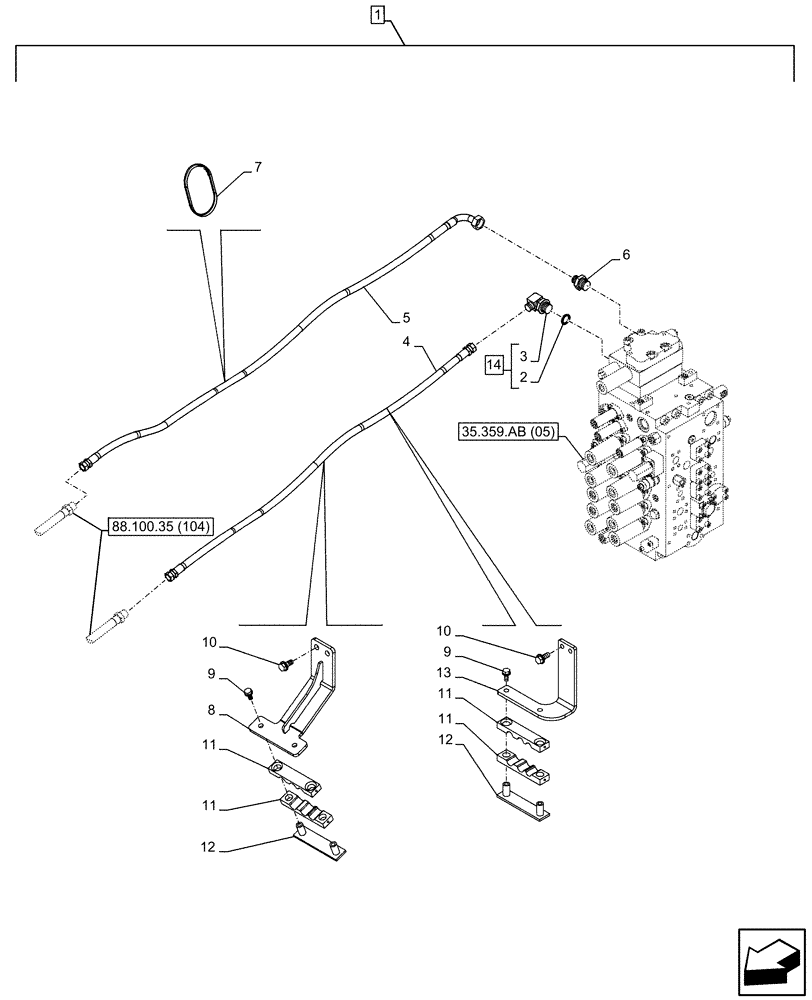

Схема запчастей Case CX300D LC - (88.100.35[111]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE (88) - ACCESSORIES
11
11
8
12
4
14
7
6
88.100.35 (104)
3
9
11
12
2
1
35.359.ab (05)
5
13
9
10
11
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP522-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

154503A1

O-RING

1шт.

3

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 14

1шт.

4

KBJ23460

HYDRAULIC HOSE

12mm x 1550mm

1шт.

5

KBJ23470

HYDRAULIC HOSE

12mm x 1700mm

1шт.

6

168988A1

ADAPTER

1шт.

7

150496A1

MOUNTING CLIP

250mm

4шт.

8

KBJ25370

BRACKET

1шт.

9

166052A1

BOLT

M10 x 25mm

4шт.

10

166352A1

BOLT

M12 x 30mm

4шт.

11

KRJ11580

HOSE CLIP

4шт.

12

KRJ11590

SUPPORT

2шт.

13

KBJ25380

BRACKET

1шт.

14

157936A1

ELBOW

ASSY, Incl 2, 3

1шт.
