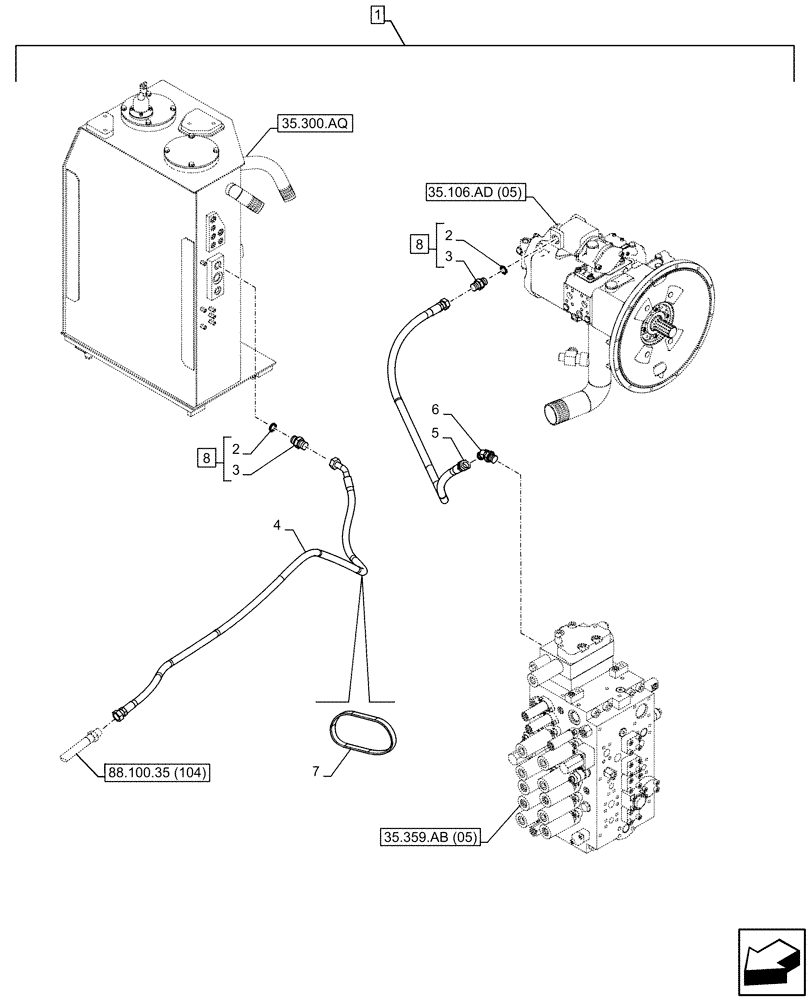

Запчасти Case CX300D LC (88.100.35[108]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE (88) - ACCESSORIES

1

KG1BP522-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

154487A1

O-RING

2шт.

3

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

2шт.

4

KBJ23480

HYDRAULIC HOSE

12 X 1780mm

1шт.

5

KBJ20100

HYDRAULIC HOSE

12 x 1400mm

1шт.

6

KHJ28650

ELBOW

G1/2" x G1/2"

1шт.

7

150496A1

MOUNTING CLIP

250mm

3шт.

8

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, Incl 2, 3

2шт.
