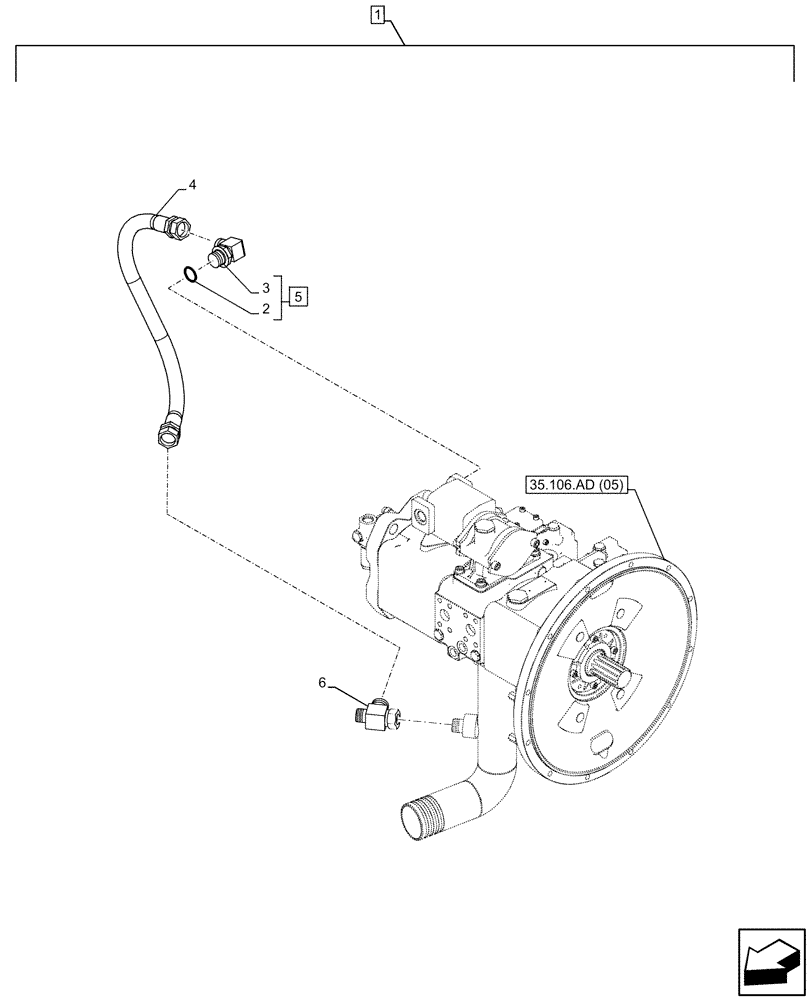

Запчасти Case CX300D LC (88.100.35[105]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, VARIABLE DELIVERY HYDRAULIC PUMP, LINE (88) - ACCESSORIES

1

KG1BP522-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

154523A1

O-RING

1шт.

3

NSS

NOT SOLD SEPARAT

Elbow, Incl in 5

1шт.

4

KSJ2909

HYDRAULIC HOSE,25.40 mm ID x 780.00 mm

1шт.

5

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

ASSY, Incl 2, 3

1шт.

6

KHJ23010

TEE

1шт.
