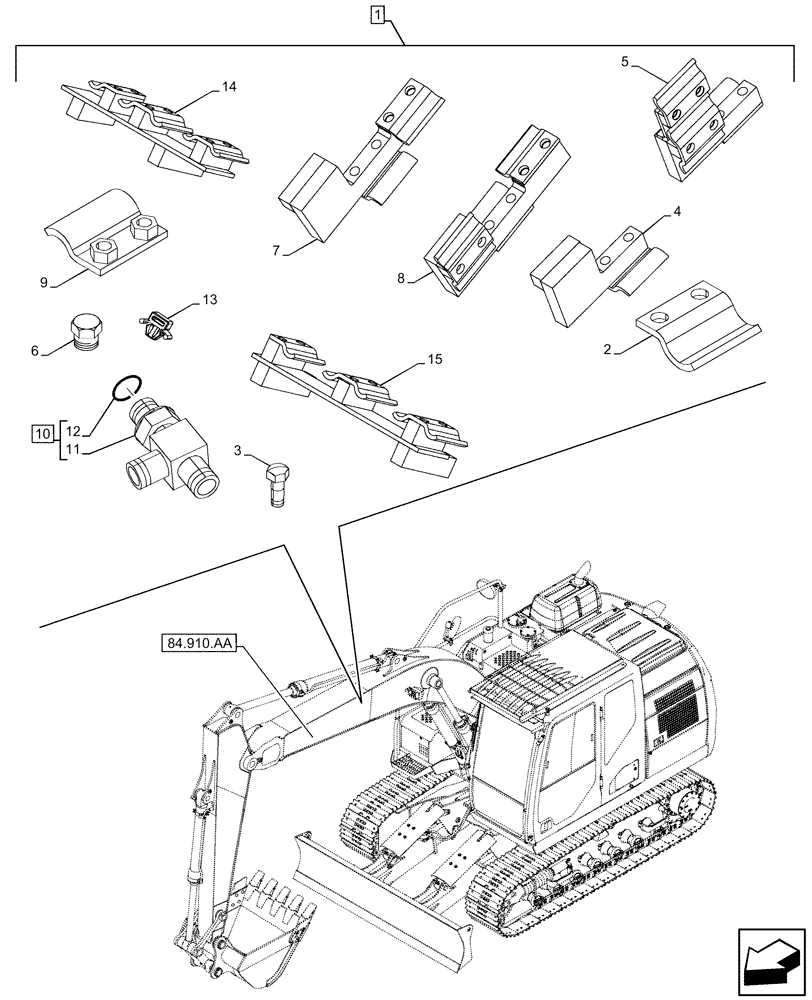

Запчасти Case CX300D LC (88.100.35[103]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, CLAMP, PLUG, TEE (88) - ACCESSORIES

1

KG1BP522-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHV10500

COLLAR CLAMP

6шт.

2

KHV10480

COLLAR CLAMP

6шт.

3

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

19шт.

3

166352A1

BOLT

20шт.

3

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

M6 x 8mm

4шт.

4

KBV35340

BAR

2шт.

5

KBV35320

BAR

2шт.

6

158841A1

PLUG

3шт.

7

KBV35380

BAR

1шт.

8

KBV35360

BAR

1шт.

9

KHV13330

CLAMP

2шт.

10

159497A1

TEE

ASSY, Incl 11, 12

2шт.

11

NSS

NOT SOLD SEPARAT

Tee, Incl in 10

2шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

13

150860A1

COLLAR

25mm x 14.5mm x 12mm, 6.3mm D

4шт.

13

KHR10220

MOUNTING CLIP

1шт.

14

KBV18730

BAR

2шт.

15

KBV18720

BAR

1шт.
